Control Units

CONTROL UNITS LOCATION

Component Location
Cruise Control Computer Behind right kick panel, below fuse and relay block No. 1. See Figure.

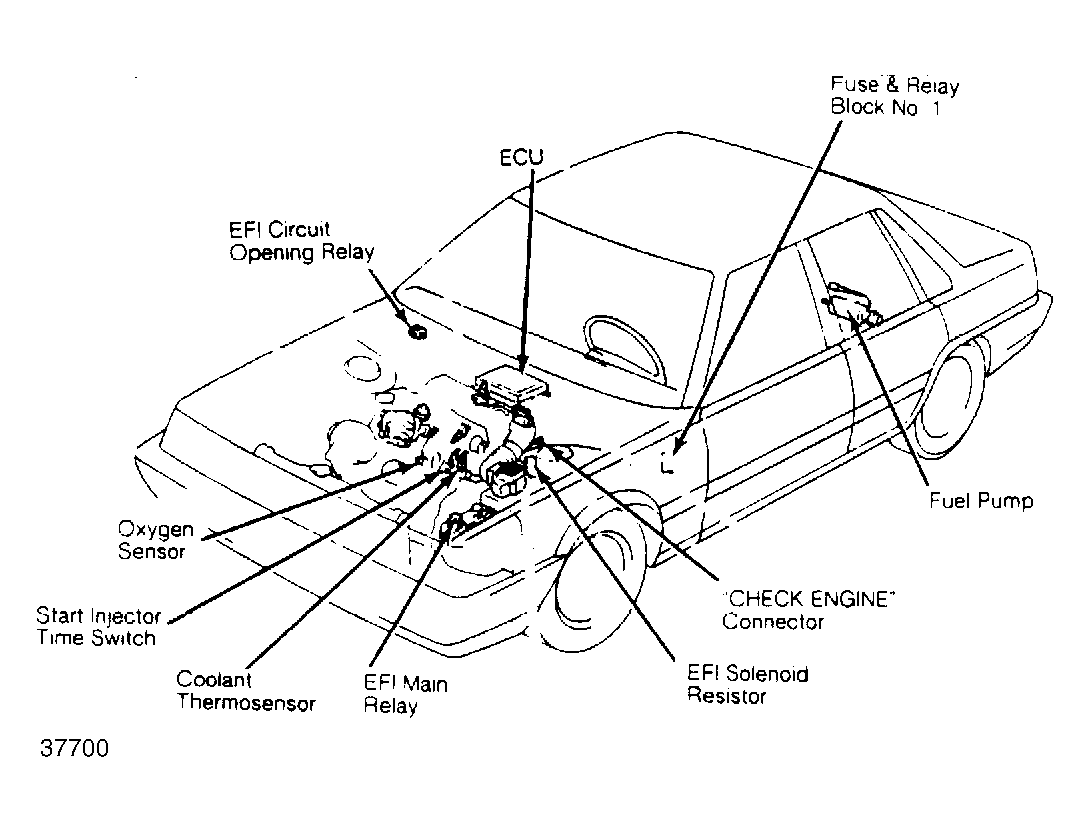

ECU Under center of dash. See Figure & Figure .

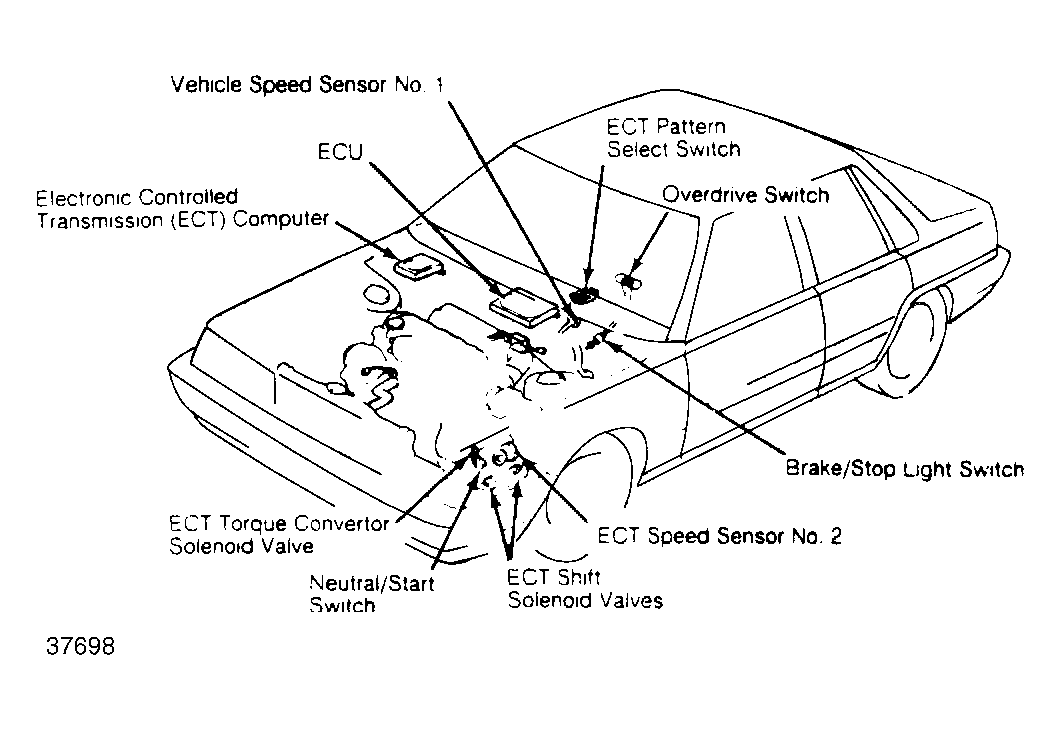

Electronic Controlled Transmission (ECT) Computer Under right dash speaker, to right of glove compartment. See Figure.
Preheat Timer Under center dash glove compartment door.
