Maximum Speed
- Install tachometer and run engine until normal operating temperature is obtained. Remove wire seal on maximum speed adjusting screw, if seal is present.

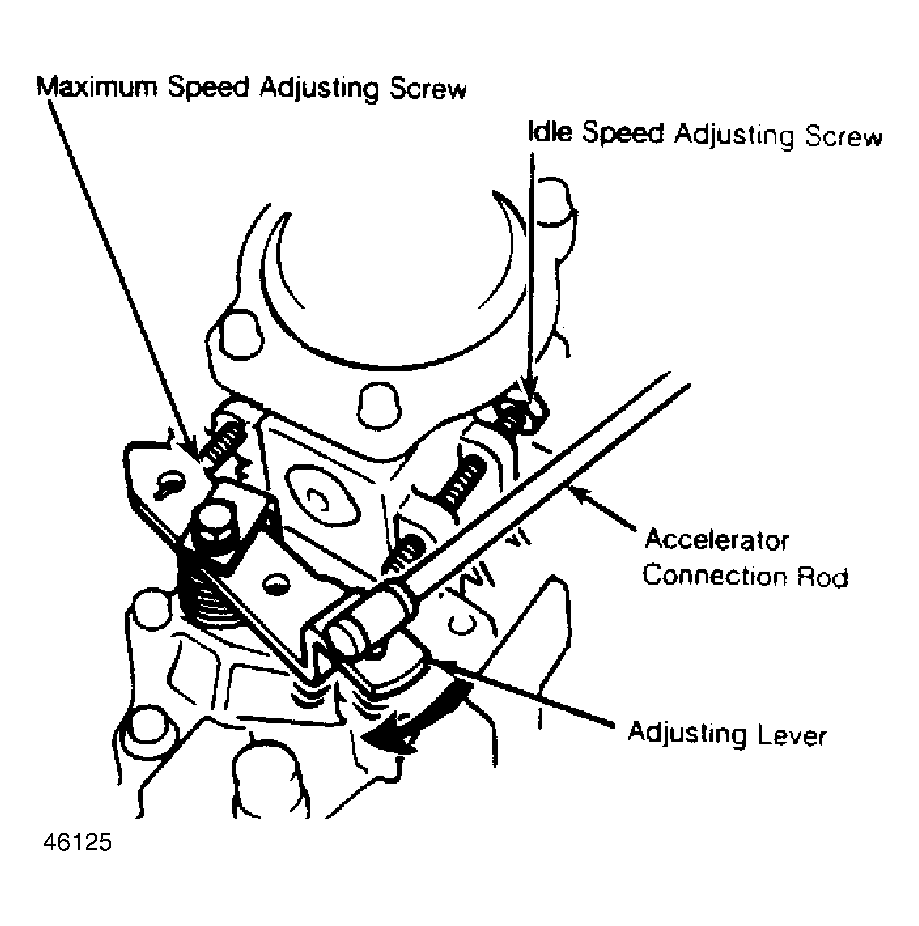

- Using special socket tool (09275-54020) or equivalent, loosen lock nut on adjusting scew and adjust maximum speed by turning adjusting screw. See Fig 1.
- Fully depress accelerator pedal, checking to see that adjusting lever is stopped by maximum speed adjusting screw. Adjust accelerator pedal with the stop bolt. Tighten lock nut at adjusting screw, and remove tachometer.
NOTE:
Be sure engine speed increases when idle adjusting knob is pulled out and turned clockwise and returns to idle when turned fully counterclockwise.
MAXIMUM SPEED SPECIFICATIONS
| Application | Maximum RPM |
|---|---|
| All Models | 4900 |
