Throttle Switch

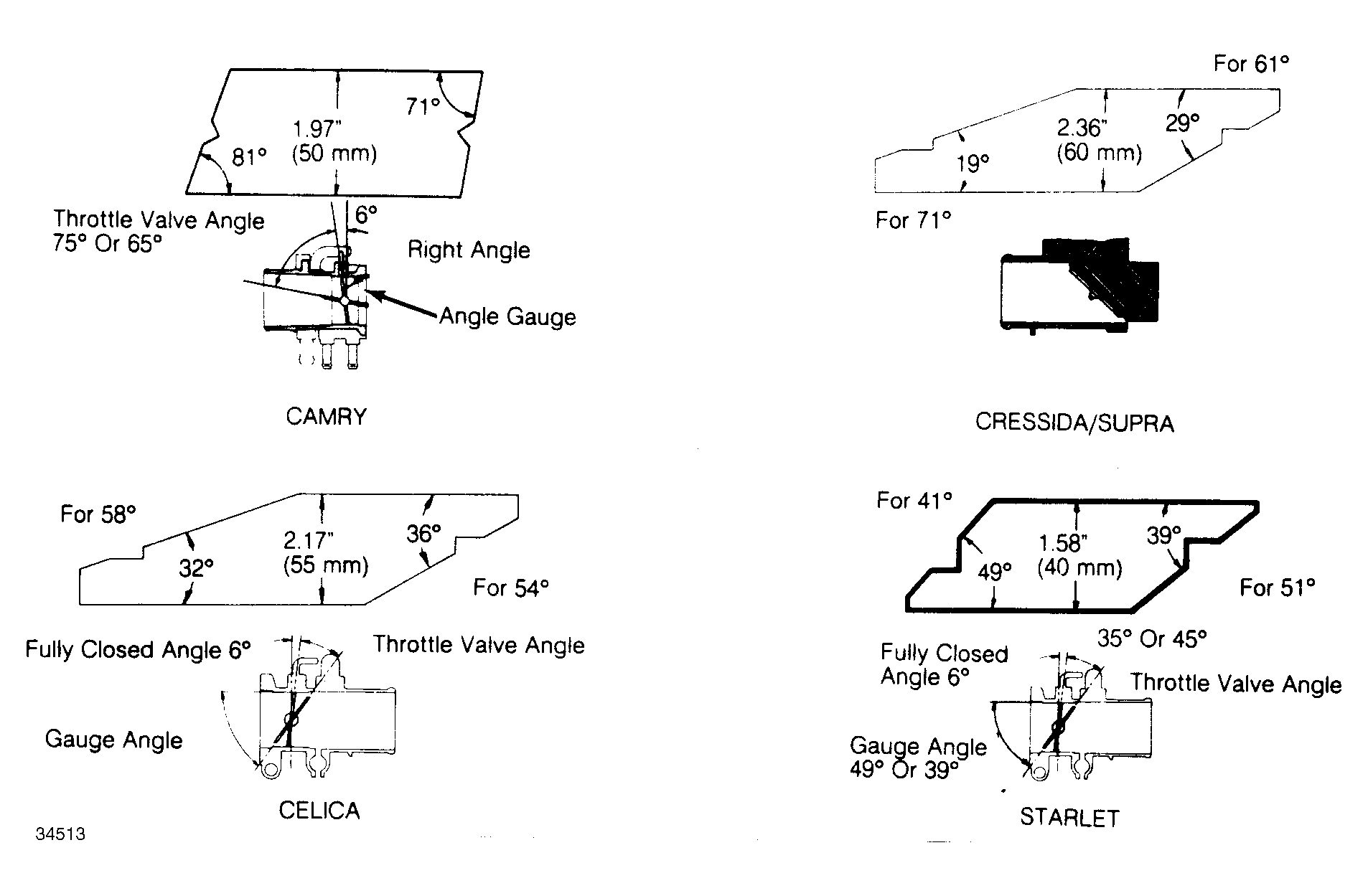

To adjust throttle angle switch, it will be necessary to construct a throttle angle gauge. See Fig 1. For adjustment procedures; See EFI article in COMPUTERIZED ENGINE CONTROL section.
NOTE:
Construct angle gauge to dimensions shown.
