Control Units

CONTROL UNITS LOCATION

Component Location

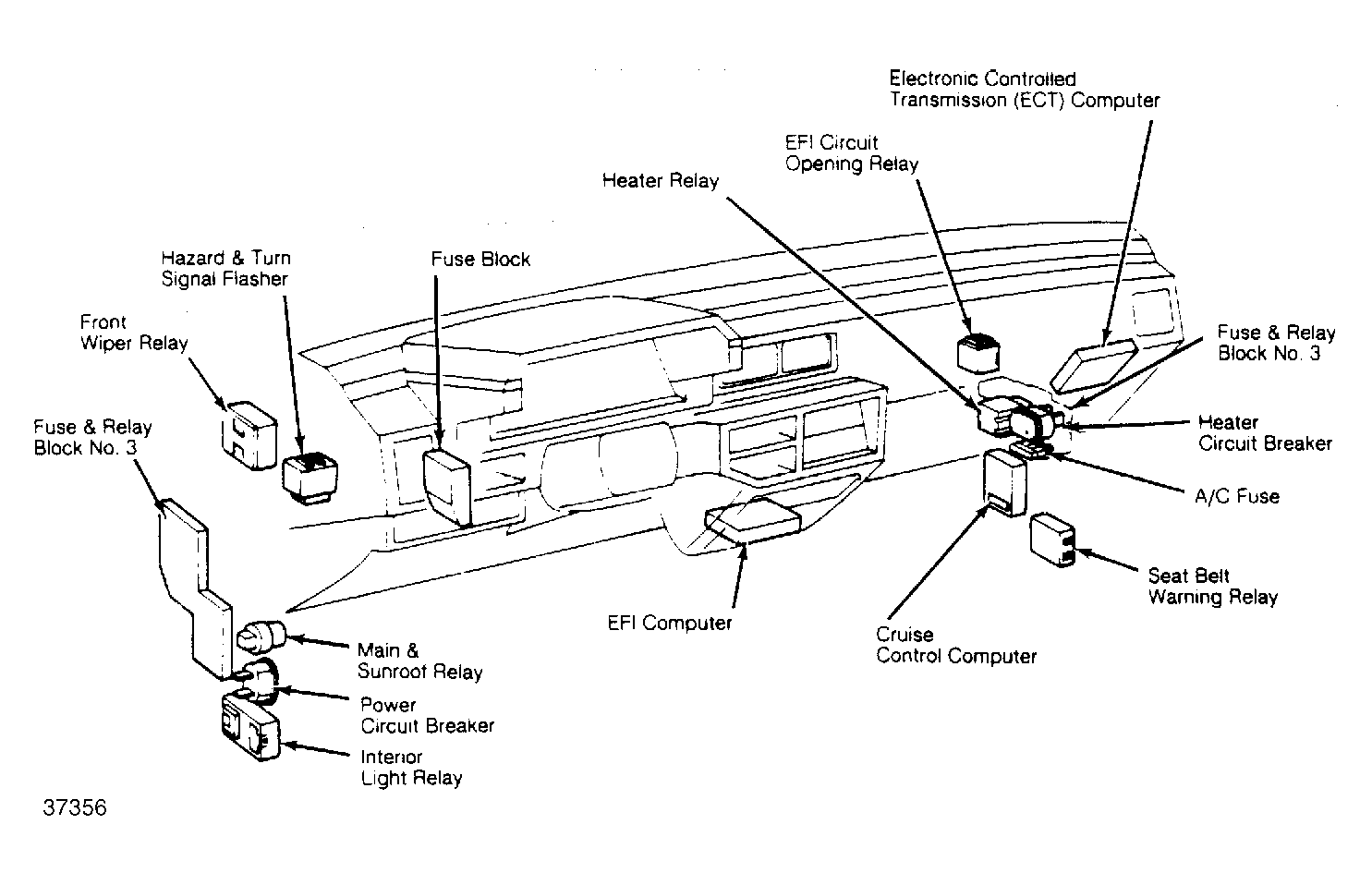

Cruise Control Computer Behind right kick panel, below fuse & relay block No. 3. See Figure.

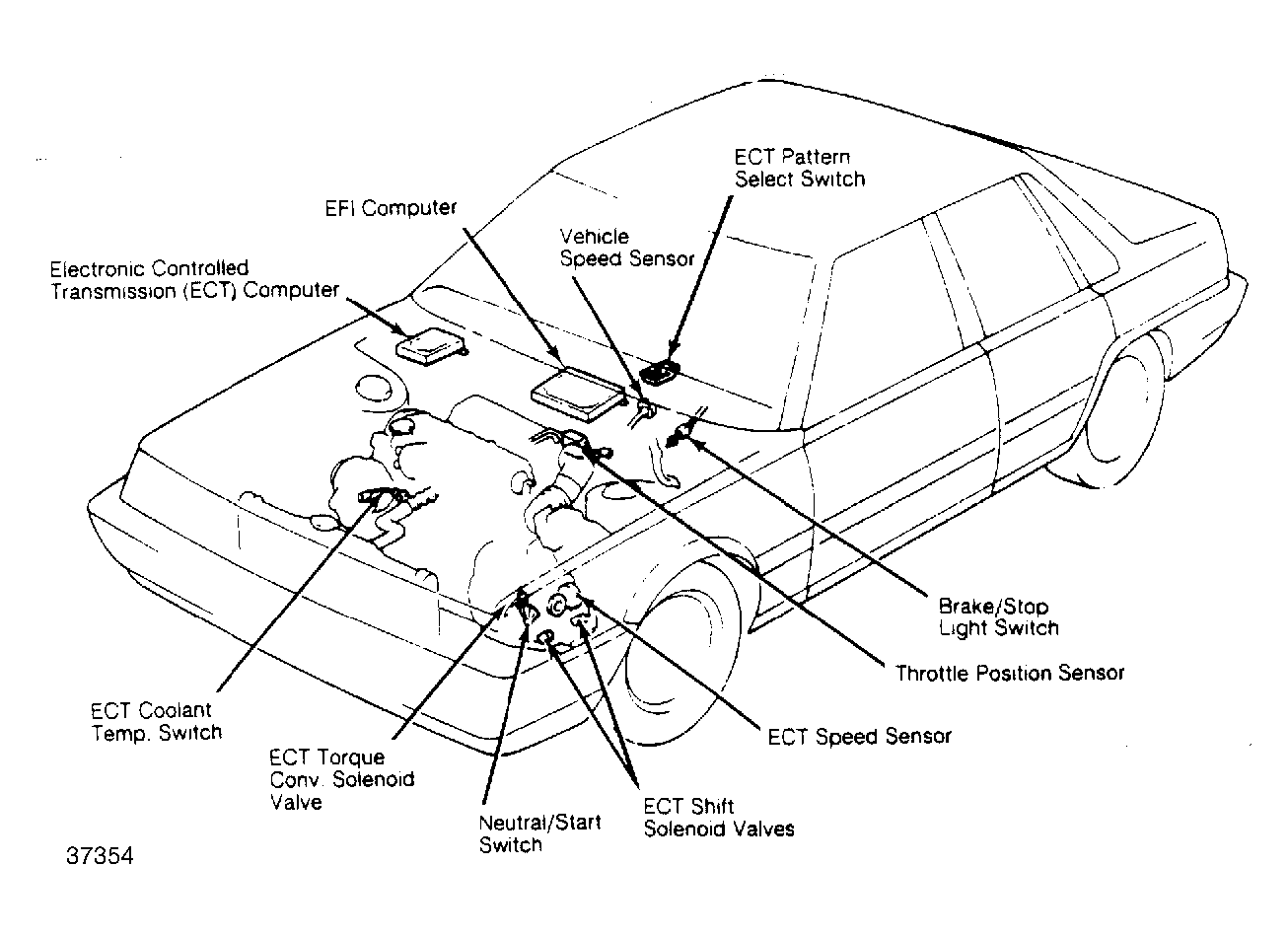

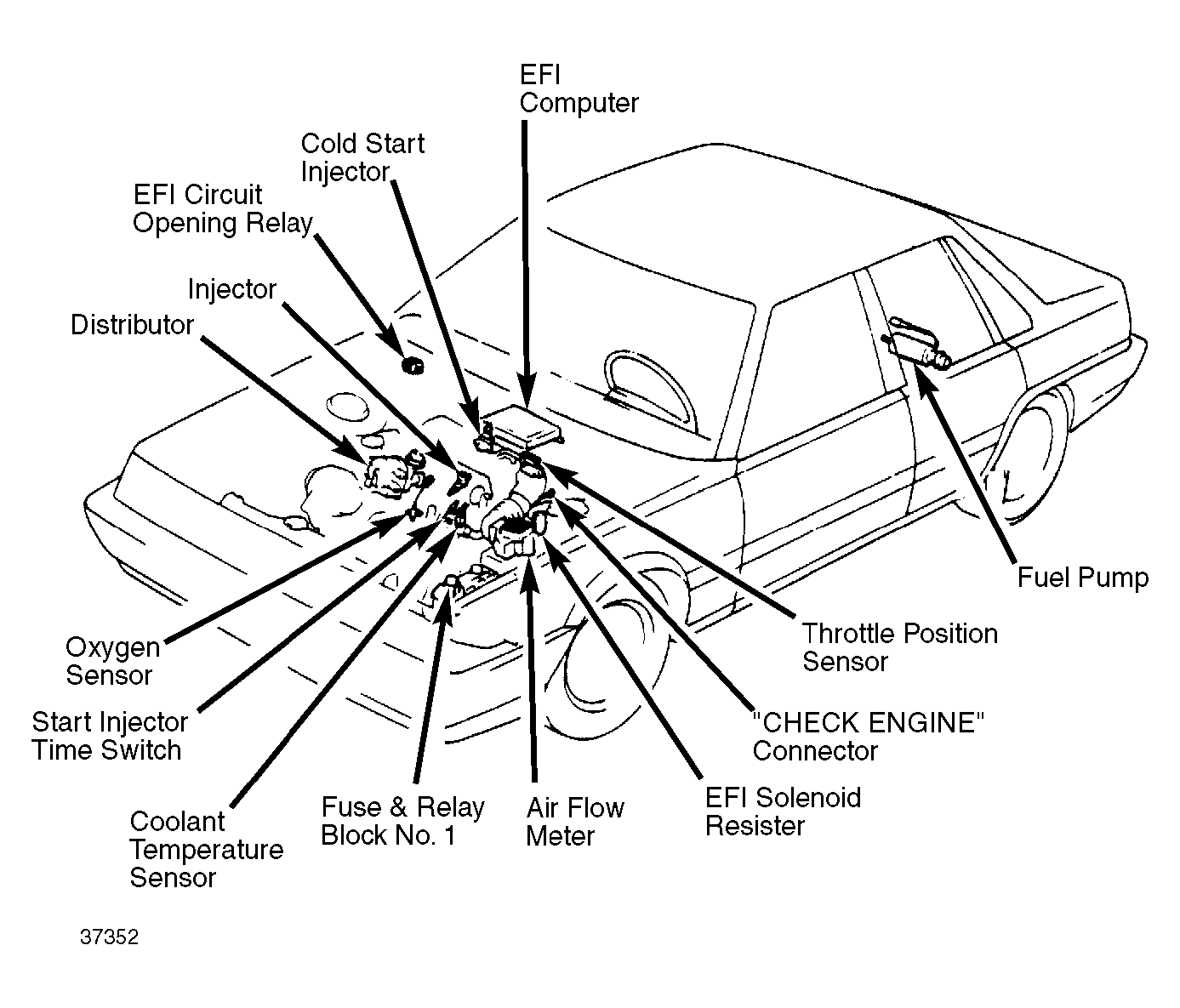

EFI Computer Below center of dash. See Figure, Figure & Figure .
Electronic Controlled Transmission (ECT) Computer Under right dash speaker, to right of glove compartment.
