Main Body

  1. Remove slow jet, power valve, metering needle guide and secondary main jet. Remove plug and primary main jet. Remove main and auxiliary acceleration pumps. See Fig 1.

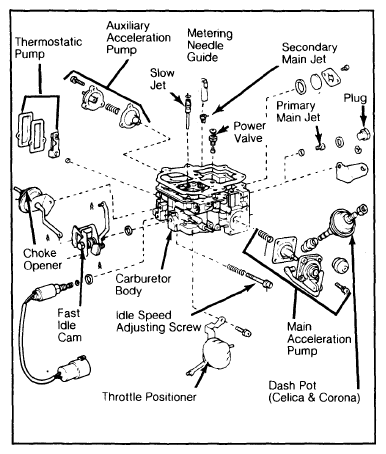

    Fig 1: Exploded View of Carburetor Main Body
    G09314392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove thermostatic valve and throttle positioner. Remove fast idle cam, choke opener, and idle speed adjusting screw. On Celica and Corona models with automatic transmission, remove dashpot.
