Main Body

  1. Remove discharge weight, spring, steel ball, and pump damping spring. Using tweezers, remove check ball retainer, then remove steel ball for pump plunger.
  2. Using driver, remove 1st and 2nd slow jets, and power valve by turning counterclockwise, then remove 1st and 2nd main jets. Remove small venturi, sight gauge glass, and diaphragm.
  3. Remove choke wire clamp, back spring for throttle shaft, choke opener connecting arm and choke opener. See Fig 1.

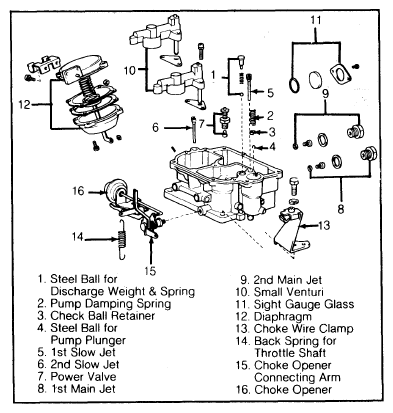

Fig 1: Exploded View of Carburetor Main Body
G09314352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
