Float Drop

Lift up float assembly and measure clearance between needle valve plunger and float lip. Adjust clearance to specification by bending both outside float tabs. See Fig 1.

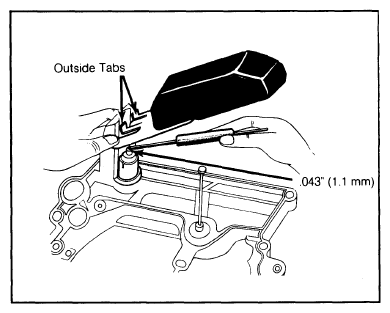

Fig 1: Float Drop Adjustment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Adjust by bending both outside float tabs.
