Electric Fuel Pumps: Description
The fuel pump is located at the left rear of the vehicle on Cressida models and right rear on Supra models.

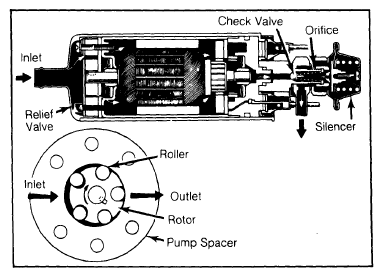

Internal components include a rotor, check valve, relief valve, orifice and silencer. See Fig. 1. If electric pump becomes defective, it must be replaced as the internal components are not serviceable.
