Wiper Switch: Installation

To install, reverse removal procedure.

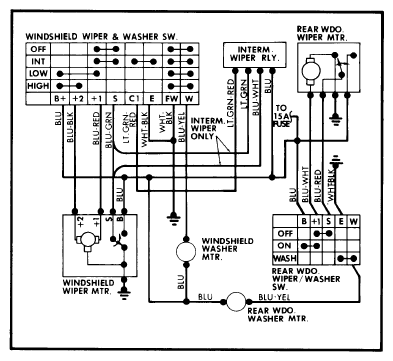

Fig 1: Celica Wiper Wiring Diagram

G09323050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

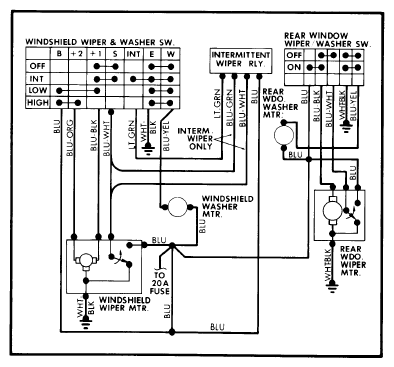

Fig 2: Corolla Wiper Wiring Diagram

G09323051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

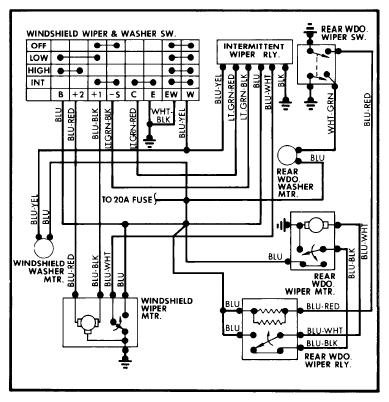

Fig 3: Corona Wiper Wiring Diagram

G09323052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

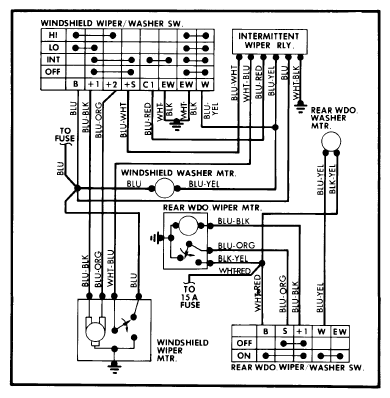

Fig 4: Cressida Wiper Wiring Diagram

G09323053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Land Cruiser FJ40 Wiper Wiring Diagram

G09323054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

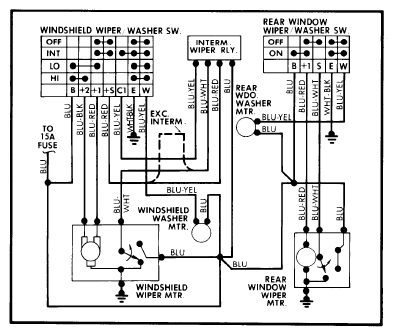

Fig 6: Land Cruiser FJ60 Wiper Wiring Diagram

G09323055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Pickup Wiper Wiring Diagram

G09323056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

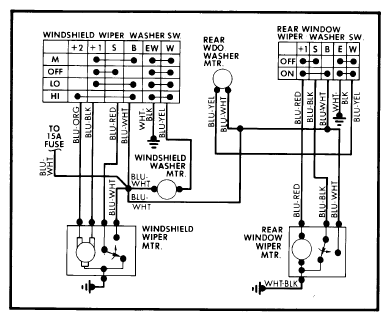

Fig 8: Starlet Wiper Wiring Diagram

G09323057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

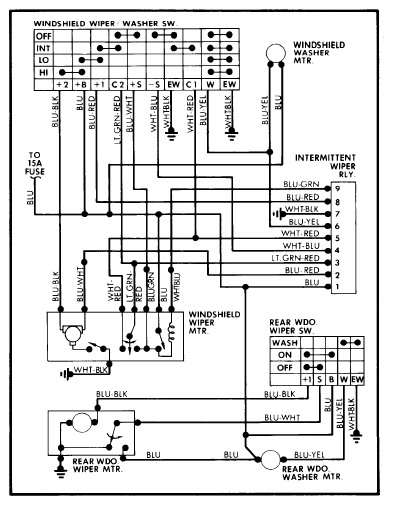

Fig 9: Supra Wiper Wiring Diagram

G09323058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

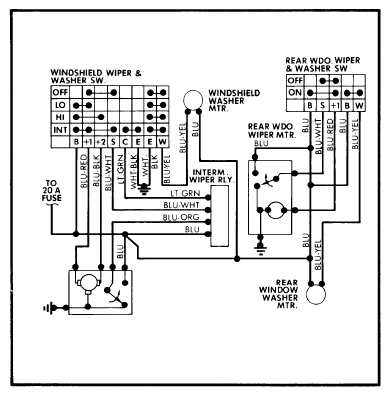

Fig 10: Tercel Wiper Wiring Diagram

G09323059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
