Vacuum Switching Valve (VSV)

Connect battery to VSV terminals as shown. Blow into lower port and see that air flows from top port. With battery disconnected, air should flow from filter on bottom of valve. Use an ohmmeter to measure resistance between terminals where battery was connected. Resistance should be 18-23 ohms. No continuity should exist between positive terminal and body of valve.

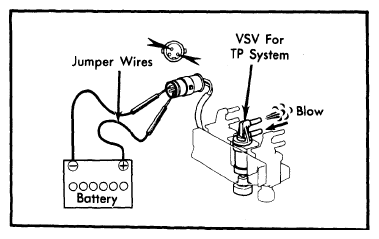

Fig 1: Vacuum Switching Valve Connections
G09314064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
