All Other Models
Tighten nut to 22 ft.lbs. on Celica, Cressida and Supra models or to 19-23 ft.lbs. for all other models while turning hub to seat bearings. Loosen nut until it can be turned with fingers. Tighten nut finger tight using a

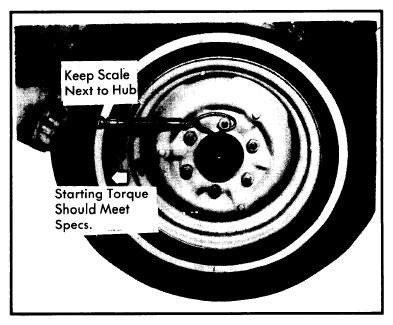

socket without the handle. If not aligned for cotter pin installation, tighten until installation is possible. Preload at hub (while turning) should be within specifications listed in Bearing Preload Specifications table.
BEARING PRELOAD SPECIFICATIONS
| Application | Preload Lbs. (kg) |
|---|---|
| Celica, Corolla & Supra | 7-1.5 (.3-.7) |
| Corona | 8-1.9(.35-.87) |
| Cressida | 9-2.2(4.1) |
