Ventilation Valve

Remove PCV valve and attach a clean piece of hose to cylinder head end of valve. Blow through valve with mouth pressure; air should pass through. Move clean hose to intake manifold end of valve and again blow through valve; air should pass through with difficulty. Replace valve if defective.

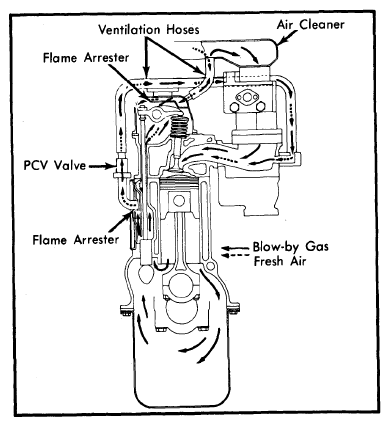

Fig 1: Land Cruiser (2F Engine) Crankcase Ventilation System
G09310561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
