Repair and Diagnosis: Transmission: Clutch: Clutches: Description: Notes

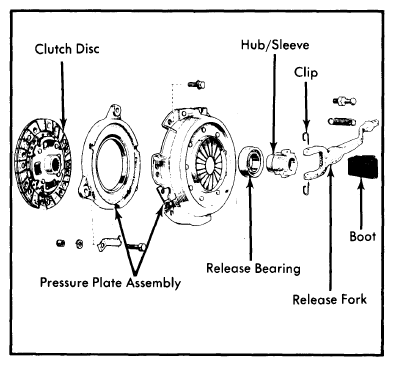

Clutch is a dry, single plate, diaphragm spring type. Clutch is hydraulic using a firewall mounted master cylinder (all models. similar) and a clutch housing mounted slave cylinder. Pickup slave cylinders are adjustable type similar to those used in past years. Other models use a new, non-adjustable slave cylinder. As the clutch disc wears, clearance is automatically compensated for by slave cylinder internal design.
