All Other Models

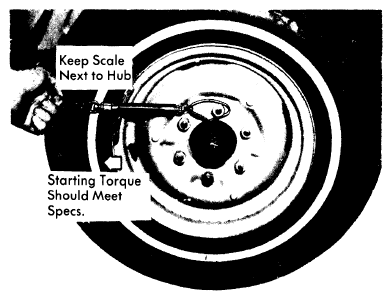

Tighten castle nut bearing retainer nut 18.8-23.2 ft. lbs. and turn brake drum back and forth to seat bearing. Loosen nut until can be turned with fingers. Tighten nut to finger tight using a socket without the handle. If not aligned for cotter key installation, tighten until installation possible. Preload at hub (hub rotating) should be within specifications.
BEARING PRELOAD SPECIFICATIONS
| Application | Preload Lbs. (kg) |
|---|---|
| Corona | 77-1.9 (.35-.86) |
| Pickup | 66-1.98 (.30-.90) |
| Corolla, Celica | 66-1.5 (.30-.68) |
| Cressida | 2.3-3.5 (1.0-1.6) |
