Hot Idle COMPENSATOR: Operation

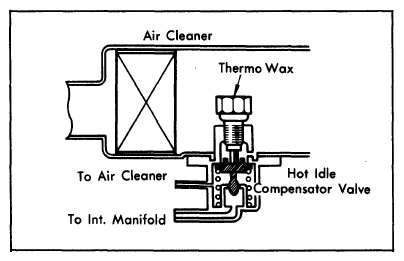

The thermo wax portion of the hot idle compensator valve is located inside the air cleaner. This thermo wax responds to temperature conditions. When it senses a high-heat condition, it opens to allow some air to flow directly from the air cleaner to the intake manifold.
