Choke Return System

This system automatically moves the manual choke to the off position when vehicle warms up. This is to assist the driver in case he forgets to push the choke knob back in. By releasing the choke knob, overheating of the exhaust system is prevented. If the exhaust system should overheat, the catalytic converter could be damaged.

Fig 1: 1975 Choke Opener System (2T-C Engine)
G09350654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

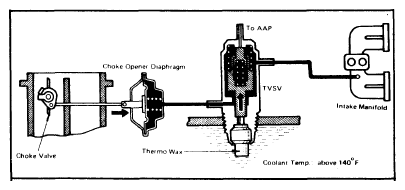

Fig 2: 1976 Choke Opener System (2T-C Engine)
G09350655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
