Repair and Diagnosis: Transmission: Clutches: Description

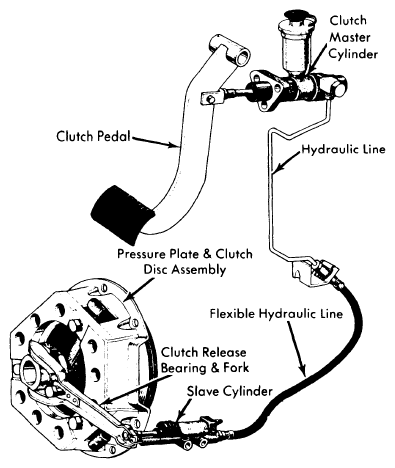

Clutch is dry, single plate, coil spring type. Clutch actuation is hydraulic, using a master cylinder mounted at pedal bracket on firewall and a slave cylinder attached to the engine mounting rear bracket. A pre-lubricated clutch release bearing is also used.
