Repair and Diagnosis: Transmission: Clutches: Description

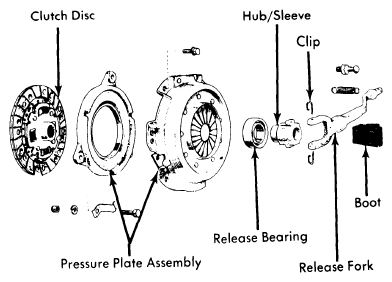

Clutch is a dry, single plate, diaphragm spring type. Clutch actuation is hydraulic, using a firewall mounted master cylinder and a clutch housing mounted slave cylinder. A pre-lubricated clutch release bearing is also used.
