Removal & Installation: Installation

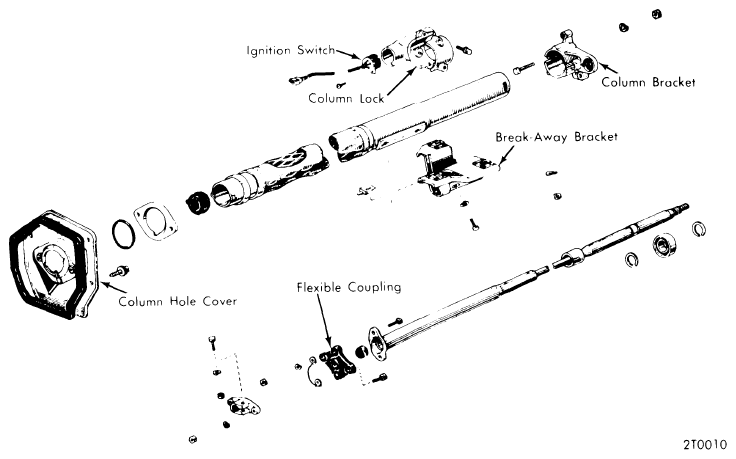

- Insert steering column through column hole from inside of vehicle, align coupling yoke on steering worm, and tighten pinch bolt.NOTE: Yoke and worm are in proper alignment when yoke bolt hole is aligned with cut-away portion of worm spline.
- Coat break-away bracket center portion with suitable weatherstrip adhesive (08704-00020). Finger tighten break-away brakcet bolts. Tighten column hole cover bolts and break-away brackets nuts, then insert and tighten center bracket retaining bolt.
