Rear Suspension: Description

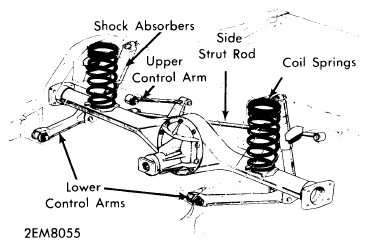

Coil spring type rear suspension with upper and lower control arm as pivot supports. Lower control arms pivot in mounts connected to chassis at front and in mounts connected to axle at rear. Single upper control arm pivots in mount connected to crossmember at front and in mount connected to axle at rear. Coil springs mount between axle and upper chassis member. Hydraulic shock absorbers mount between axle and upper chassis member. A side strut bar mounts to rear of axle and runs parallel to axle to mount at frame.
