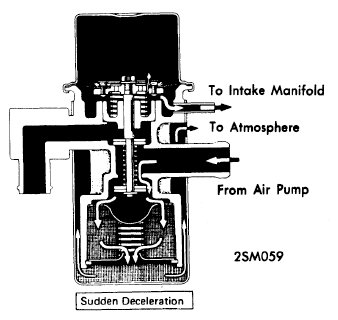

Air By-Pass Valve
If air from air pump blows out from valve while engine is idling, valve seat is defective and valve must be replaced. If air from pump blows out continuously from by-pass valve while throttle is accelerated rapidly, the valve is normal. If air does not blow out at this time, diaphragm is defective and valve must be replaced.
