Pedal Height

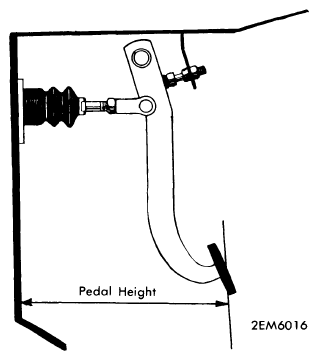

Pedal height is measured from floor mat to top of pedal pad (see Fig 1). Adjust stop bolt at top of pedal assembly until specified pedal height is obtained.
Pedal Height
| Application | Height |
|---|---|
| FJ 40, 43 & 45 Series | 9.6" (244 mm) |
| FJ 55 Series | 6.7" (170 mm) |
