Buckle - 1st Row - LH - Remove And Replace: Install

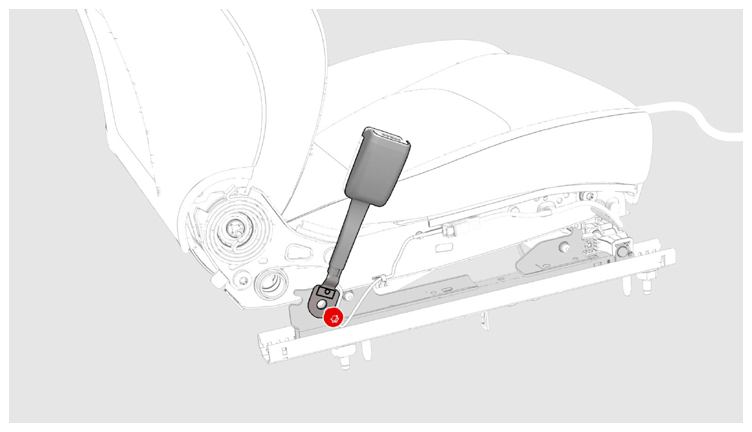

- Install the patch bolt that comes with the new seat belt buckle to attach the buckle to the seat track.
40 N.m (29.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
- 3/8 in std ratchet
- 3/8 in torque wrench (installation only)
- 3 in extension

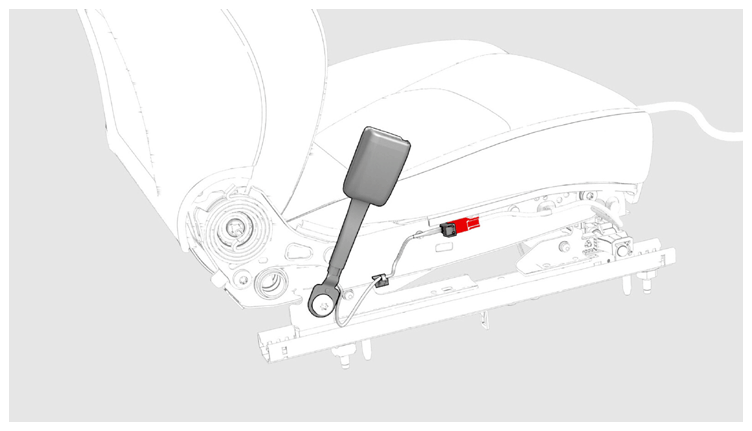

- Connect the electrical connector from the LH 1st row buckle.
- Connect 12V power. See 12V/LV Power (Disconnect and Connect) .
- Raise the seat to its highest position while inspecting the seat belt buckle harness with a flashlight to make sure its not catching on anything.

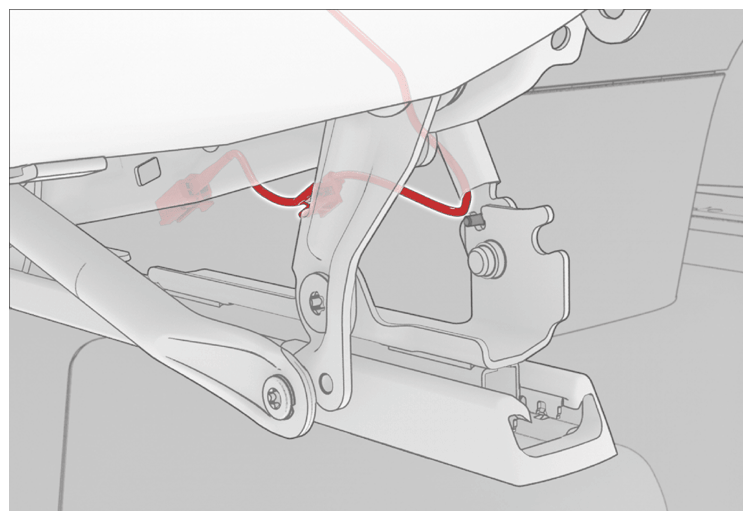

- Make sure the seat belt buckle harness is routed in front of the datum and not around the datum.

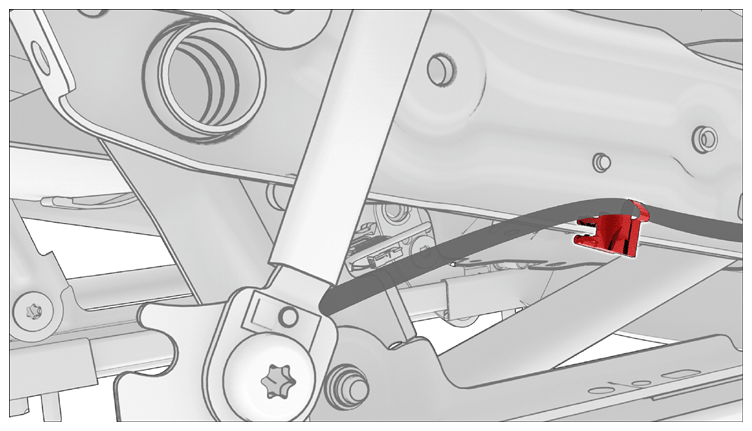

- With the seat still at its highest position, adjust and secure the seat belt buckle harness clip along the inner seat rail and verify the harness is extended as far forward as possible to eliminate slack on the back side of the clip.
- Fully raise and lower the seat, inspecting the seat belt buckle harness with a flashlight to make sure its not catching on anything.
- Install the inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace) .
