Overhead Console - Front - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

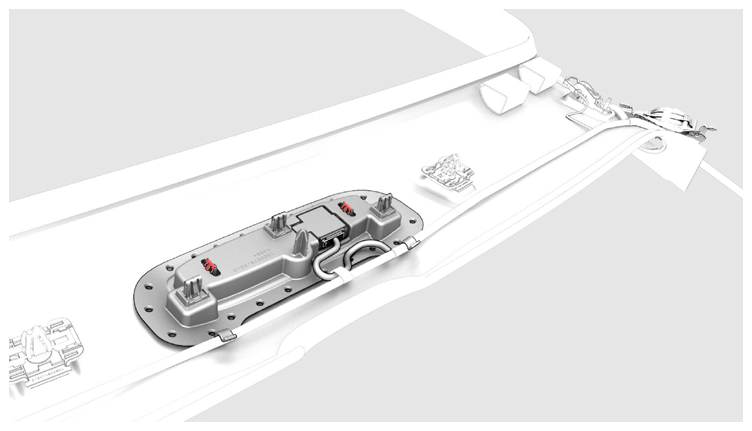

  1. Release the clips (x2) that attach the front overhead console to the headliner, and then lower the console from the headliner.
    G14824644Courtesy of TESLA, INC.
    CAUTION: To avoid damaging the headliner, do not pry against the headliner. Insert a 90 degree trim tool near the dome light and pull downwards to release the clip, and then move to the other side to release the remaining clip.
  2. Disconnect the electrical connector from the front overhead console.
    G14824645Courtesy of TESLA, INC.

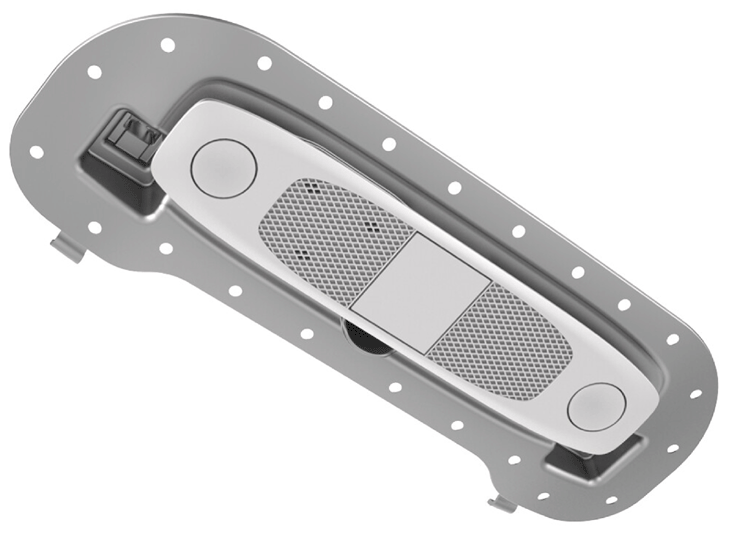

  3. Remove the front overhead console from the headliner.
    G14824646Courtesy of TESLA, INC.
