Steering Gear and Lower Column - Steering GEAR Assembly, LHD - Remove And Replace: Notes

Last modified: 22/03/2024 00:33:19

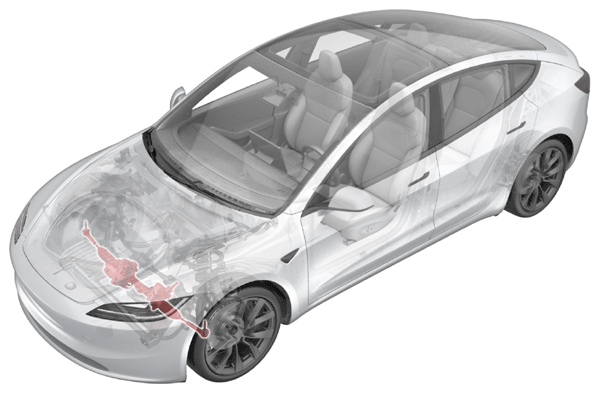

Fig 1: LHD Steering Rack Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2023-12-11: Updated last step with cross reference to Alignment Requirement Tables.
1090880-00-A Steering Wheel Holder **Std. w/Hunter Alignment Equip.**
1065131-00-A Kit, Battery Coolant Drain
1773595-00-A RJ45 Ethernet Cable
1090881-00-A Brake Pedal Depressor
1044206-00-A Wheel Trim Removal Tool
1049463-00-A Steering Wheel Level
1773092-00-A Diagnostic Harness Adapter - All Models

TORQUE SPECIFICATIONS - STEERING GEAR AND LOWER COLUMN - STEERING GEAR ASSEMBLY, LHD (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace
Bolt that attaches the steering gear assembly to the electric steering column	18 N.m (13.3 lbs-ft)	13 mm socket Ratchet/torque wrench	Reuse
Jamb nuts to the LH and the RH outer tie rod ends	80 N.m (59.0 lbs-ft)	Combination wrench 12pt 21 mm Combination wrench 12pt 14 mm Wheel Alignment Torque Wrench Kit	Reuse
Nuts that attach the LH and the RH front tie rod ends to the LH and the RH front suspension knuckles	180 N.m (132.7 lbs-ft)	Cordless 1/2 in Dr Impact 22 mm deep socket 1/2 in to 3/4 in adapter - 1717365-00-A Ratchet/torque wrench	Replace
Outer bolts that attach the steering gear assembly to the front subframe	47 N.m (34.7 lbs-ft)	Flex head ratchet/flex head torque wrench 11 in extension 15 mm socket	Reuse
Inner bolts (x2) that attach the steering gear assembly to the front subframe	75 N.m (55.3 lbs-ft)	Ratchet/torque wrench 6 in extension 18 mm socket 3 in extension	Reuse
