Rear Drive Unit Assembly - Output Axle Seal, 3DU - Remove And Replace: Remove

  1. Remove the LH rear drive unit halfshaft. See REAR HALFSHAFTS - HALFSHAFT ASSEMBLY, REAR, SHAFT (LH) - REMOVE AND REPLACE .

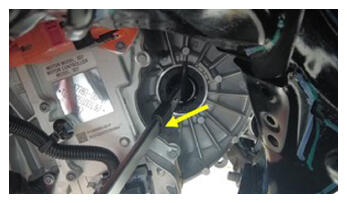

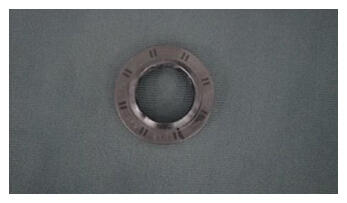

  2. Use the adjustable seal puller tool to remove the LH output seal from the rear drive unit.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16604565Courtesy of TESLA, INC.
    G16604566Courtesy of TESLA, INC.
