Steering Gear and Lower Column - Tie Rod Outer Assembly - LH - Remove And Replace: Install

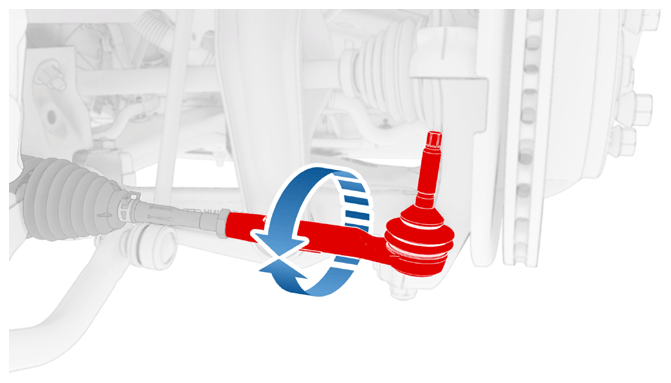

Rotate the tie rod outer assembly to install the LH tie rod outer assembly.

Courtesy of TESLA, INC.

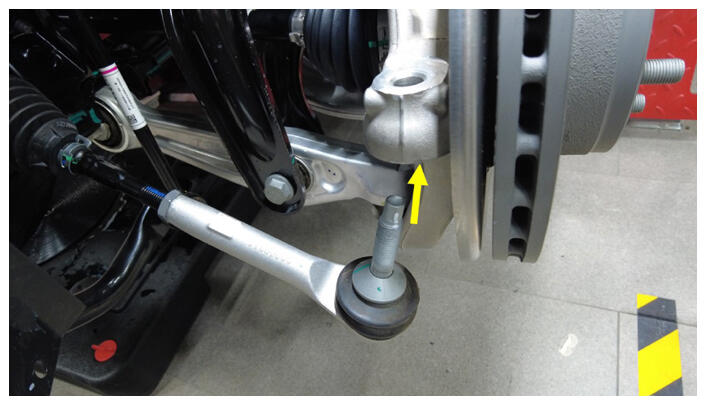

Position LH tie rod outer assembly to LH front knuckle.

Courtesy of TESLA, INC.
Align tie rod outer assembly to original location marked on threads.

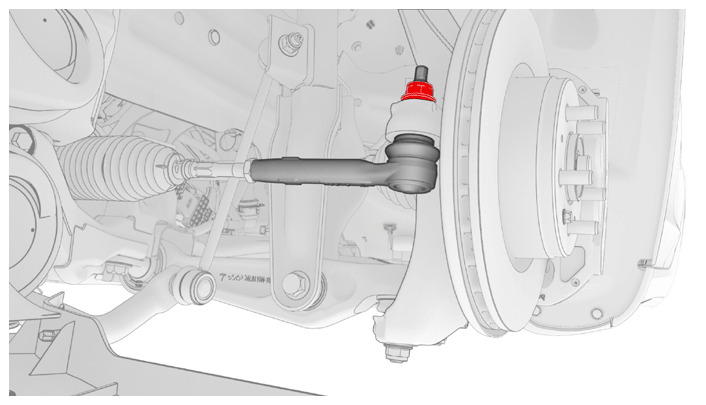

Install the outer nut that attach the LH tie rod outer assembly to LH front knuckle.
180 N.m (132.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless 1/2 in Dr Impact
- 22 mm deep socket
- 1/2 in to 3/4 in adapter - 1717365-00-A
- Ratchet/torque wrench
Courtesy of TESLA, INC.

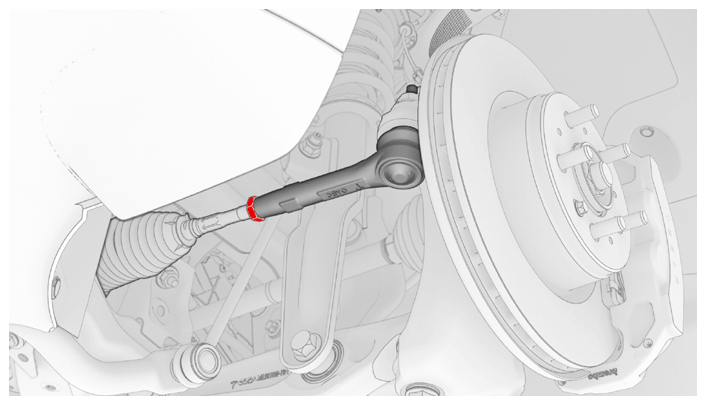

Torque jamb nut to tie rod outer assembly.
80 N.m (59.0 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Combination wrench 12pt 21 mm
- Combination wrench 12pt 14 mm
- Wheel Alignment Torque Wrench Kit
Courtesy of TESLA, INC.
Install the front wheels. See WHEEL - FRONT - LH - REMOVE AND REPLACE .
Remove the lift arms from below the vehicle.
Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity . See ALIGNMENT REQUIREMENT - SUSPENSION .
