Impact And Acceleration Sensors - Restraint Control Module - Universal - Remove And Replace: Notes

Last modified: 21/05/2024 03:54:58

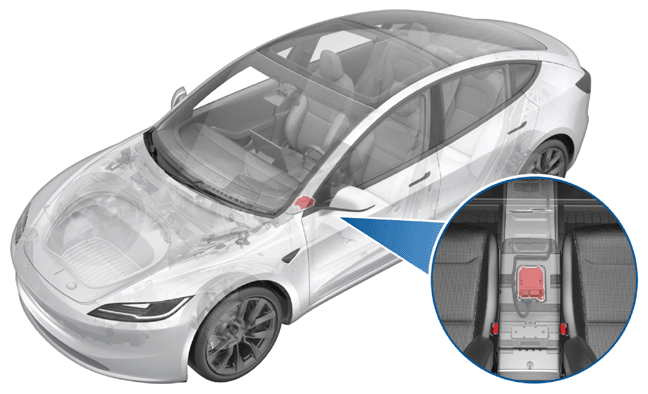

Fig 1: Restraint Control - Universal Module Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2024-05-14: Replaced Toolbox 3 routines by routines using the touchscreen.
1060071-00-A Torque Wrench 1/4 in Dr Hexagon

WARNING: Make sure 12V/LV power has been disconnected for at least 1 minute before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see AIRBAG AND SUPPLEMENTARY RESTRAINT SYSTEM (SRS) PRECAUTIONS

WARNING: Supplementary Restraint System (SRS) components can be hazardous if not handled properly. For more information on SRS precautions, see AIRBAG AND SUPPLEMENTARY RESTRAINT SYSTEM (SRS) PRECAUTIONS

WARNING: While performing any Supplementary Restraint System (SRS) related repairs, it is important to disconnect 12V/LV power. If the vehicle's 12V/LV power is NOT disconnected and the Restraint Control Module is removed or disturbed, this can result in the deployment of the vehicle's airbags.
