Impact And Acceleration Sensors - Restraint Control Module - Universal - Remove And Replace: Install

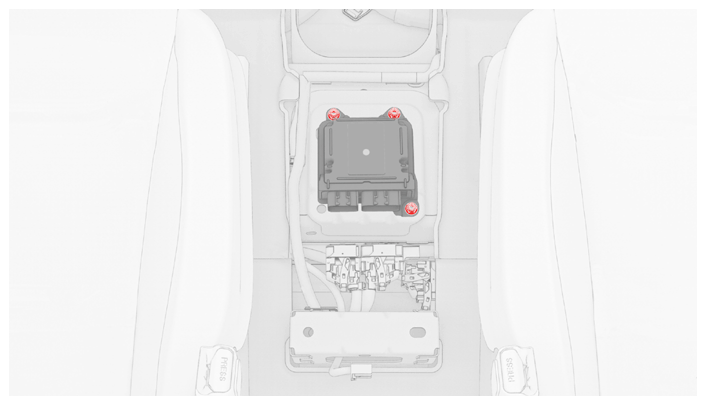

  1. Install the restraint control module to the body, and then install new nuts (x3) to attach the module to the body.

    8 N.m (5.9 lbs-ft)

    NOTE: Verify part number on the new module is correct.
    NOTE: Use of the following tool(s) is recommended:
    • Cordless Drill
    • 10 mm deep nutsetter
    G16600629Courtesy of TESLA, INC.

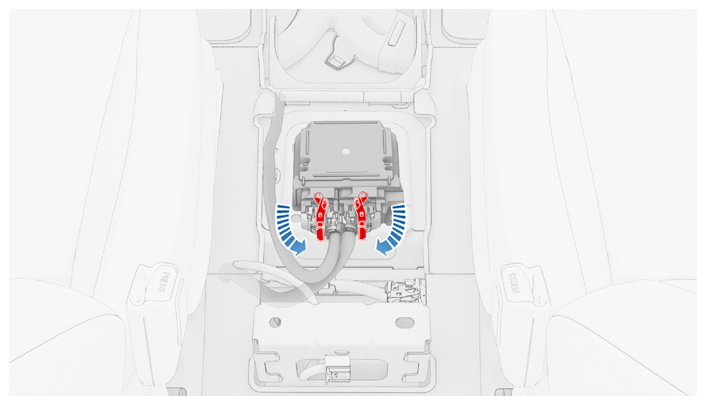

  2. Connect the electrical connectors to the restraint control module and then engage the connector locking levers.
    G16600630Courtesy of TESLA, INC.
  3. Connect LV power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
  4. Install the center console. See CENTER CONSOLE - CENTER CONSOLE, ASSEMBLY - REMOVE AND REPLACE .
  5. Park the vehicle on a level surface.
  6. Reinstall the vehicle firmware. See SOFTWARE REINSTALL - TOUCHSCREEN .
  7. Enter Service Mode Plus. See SERVICE MODE PLUS

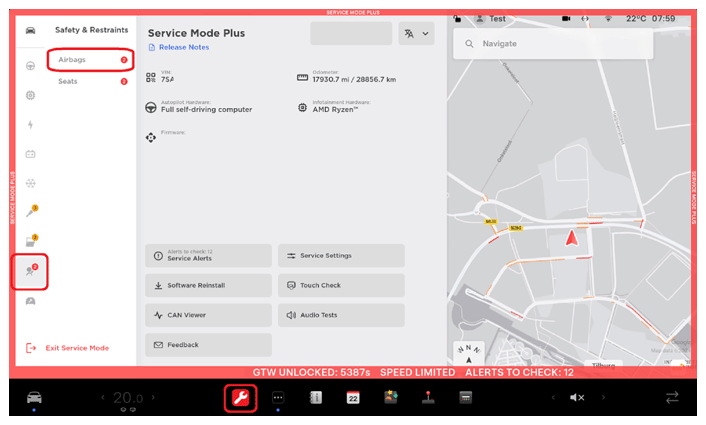

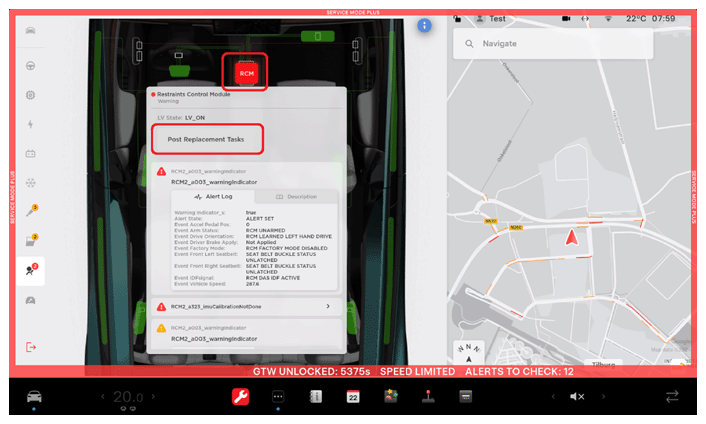

  8. On the touchscreen, touch Service Mode > Safety and Restraints > Airbags > RCM > Post Replacement Tasks  .
    G16600631Courtesy of TESLA, INC.
    G16600632Courtesy of TESLA, INC.

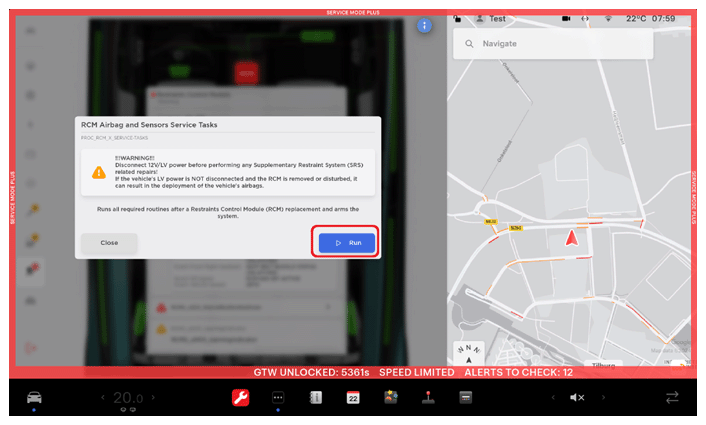

  9. On the next screen, touch Run  , and allow the routine to complete.
    G16600633Courtesy of TESLA, INC.

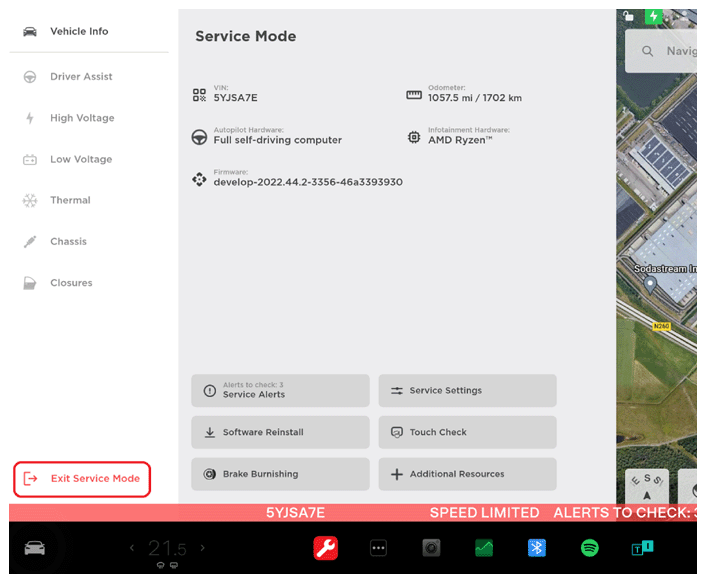

  10. Exit Service Mode.
    G16600634Courtesy of TESLA, INC.
