Rear Drive Unit Assembly - Electric Oil Pump, Tesla - Remove And Replace: Notes

Last modified: 12/03/2024 13:13:43

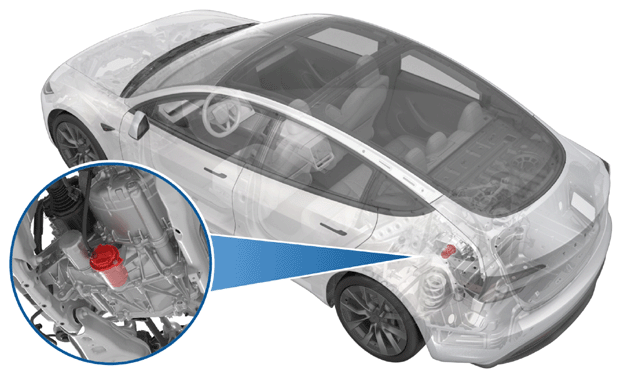

Fig 1: Rear Drive Unit Tesla Electric Oil Pump Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

TORQUE SPECIFICATIONS - REAR DRIVE UNIT ASSEMBLY - ELECTRIC OIL PUMP, TESLA (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace
Bolt that secures the positive jump post	5 N.m (3.7 lbs-ft)	4 in extension 8 mm socket Cordless 1/4 in Dr Ratchet Ratchet/torque wrench	Reuse
Bolts that secures the oil pump	5 N.m (3.7 lbs-ft)	Ratchet/torque wrench 4 in extension Socket 3/8 in Dr EPL10 1/4 in to 3/8 in adapter Torque wrench with angle measurement	Reuse
Fill plug on the rear drive unit	15 N.m (11.1 lbs-ft)	Ratchet/torque wrench 8 mm socket 1/4 in to 3/8 in adapter	Reuse
