Rear Drive Unit Assembly - Assembly, 3DUR, MOSFET - HC - Remove And Replace: Notes

Last modified: 12/01/2024 01:25:41

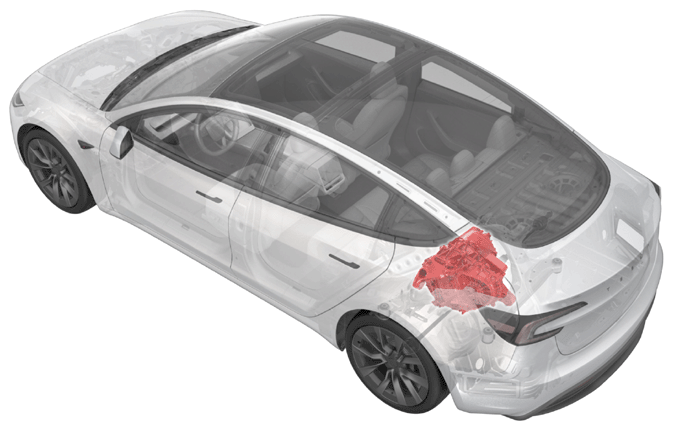

Fig 1: HC Mosfet Rear Drive Unit (3DU) Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2024-01-24: Added a note to install a new motor ID label in hood/trunk for China, Japan and Korea.
2023-12-11: Updated last step with cross reference to Alignment Requirement Tables.

WARNING: This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
