Front Drive Inverter - Assembly, Fluid Coupling - Remove And Replace: Notes

Last modified: 17/10/2023 18:56:33

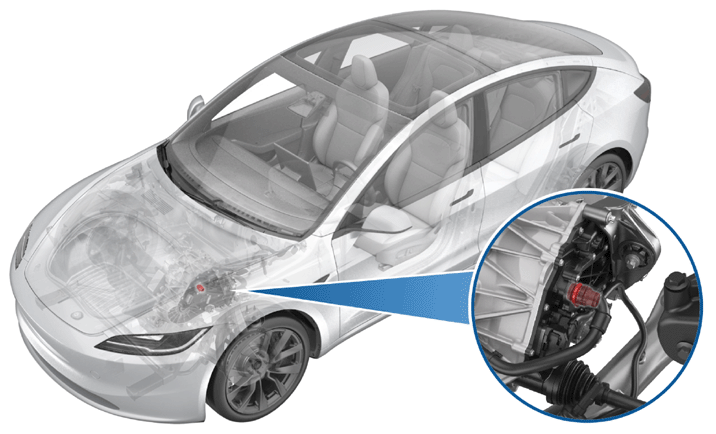

Fig 1: Front Drive Inverter Fluid Coupling (90 Degrees) Component Location

Courtesy of TESLA, INC.

• 1463565-00-A Tool, Flexible Funnel
• 1135762-00-A Kit, Svc Plug, Cooling Hose, Model 3

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the 90 degrees fluid coupling to the front drive inverter assembly	6 N.m (4.4 lbs-ft)	Cordless Drill Torx T25 socket Flex head ratchet/flex head torque wrench Ratchet/torque wrench Torx T25 bit	Replace

Last modified: 21/11/2023 21:40:21

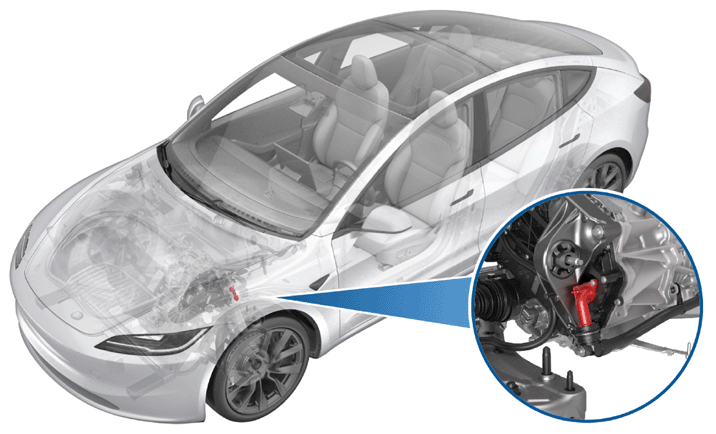

Fig 1: Front Drive Inverter Fluid Coupling (Straight) Component Location

Courtesy of TESLA, INC.

• 1135762-00-A Kit, Svc Plug, Cooling Hose, Model 3
• 1080568-00-A Fluid Catcher
• 1060071-00-A Torque Wrench 1/4 in Dr Hexagon
• 1065131-00-A Kit, Battery Coolant Drain

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the straight fluid coupling and the front drive unit inverter	6 N.m (4.4 lbs-ft)	Cordless drill Torx T25 Bit Torx T25 socket Flex head ratchet/flex head torque wrench Ratchet/torque wrench	Reuse
