Rear Drive Unit Assembly - Bushing, Gearcase, 3DUR - Remove And Replace: Install

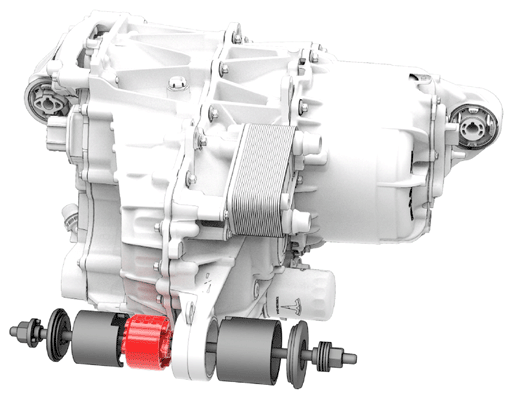

  1. Set up the bushing tool to press in the new bushing.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16604496Courtesy of TESLA, INC.
  2. Turn the nut on the thrust washer to press the new bushing into the drive unit.
  3. Separate the bushing tool, and then remove it from the drive unit.
  4. Install the rear drive unit. See REAR DRIVE UNIT ASSEMBLY - ASSEMBLY, 3DUR, MOSFET - HC - REMOVE AND REPLACE
