Rear Drive Unit Assembly - Bushing, Gearcase, 3DUR - Remove And Replace: Remove

  1. Remove the rear drive unit. See REAR DRIVE UNIT ASSEMBLY - ASSEMBLY, 3DUR, MOSFET - HC - REMOVE AND REPLACE

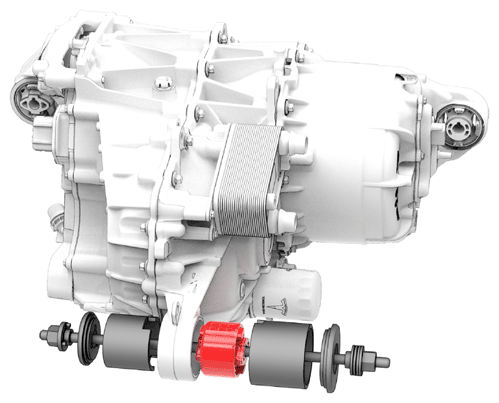

  2. Install the drive unit bushing tool onto the rear bushing.
    G16604493Courtesy of TESLA, INC.
  3. Turn the nut on the thrust washer to remove the bushing from the drive unit.

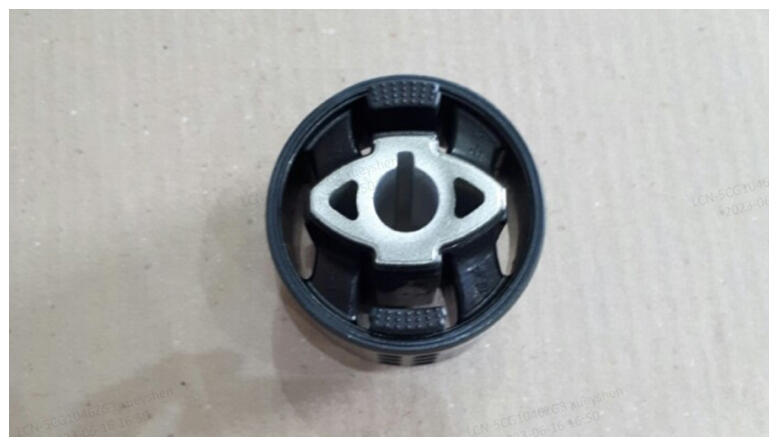

  4. Separate the bushing tool, and then remove it from the drive unit.
    G16604494Courtesy of TESLA, INC.
