Rear Undertray and Diffuser - Diffuser Assembly, Rear Fascia - Remove And Replace: Remove

Remove the rear fascia. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .
Remove the pedestrian warning speaker. See INFOTAINMENT - AUDIO SYSTEM - SPEAKERS, SUBWOOFER AND AMPLIFIER - AUDIO SPEAKERS - PEDESTRIAN WARNING SPEAKER - REMOVE AND REPLACE .
Remove the bolts (x2) that attach the rear fascia diffuser to the inside of the rear fascia.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

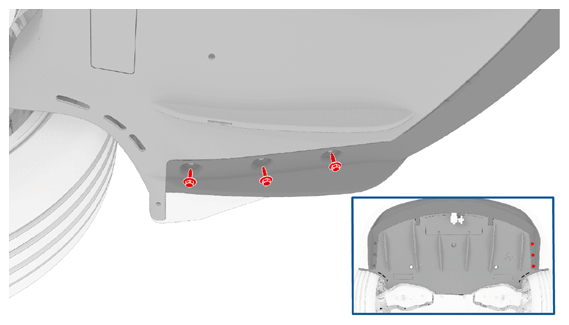

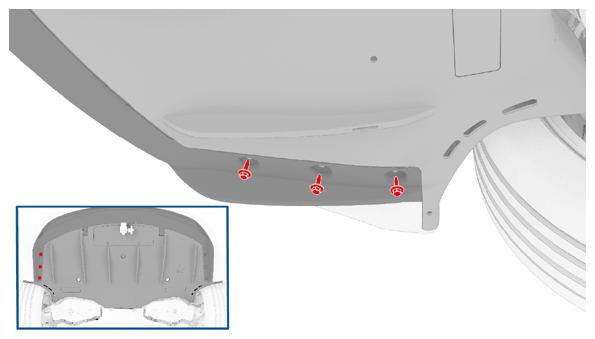

Remove the bolts (x6) that attach the rear fascia diffuser to the outer edge of the rear fascia.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Release the location hooks (x2) that attach the rear fascia harness to the rear fascia diffuser.

Courtesy of TESLA, INC.
Release the tabs (x10) that attach the rear fascia diffuser to the rear fascia, and then remove the diffuser.
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
