Front Subframe - Front Subframe Assembly - Remove And Replace: Notes

Last modified: 16/04/2024 23:58:22

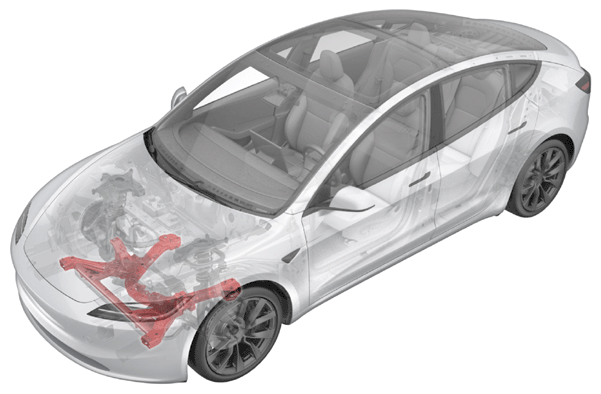

Fig 1: Front Subframe Assembly Components Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2024-04-17: Updated the front fascia to vehicle torque specification from 4 N.m to 2.5 N.m.
2024-04-11: Updated front lower lateral link to subframe torque specification.
