Touchscreen - Center Display Assembly - Remove And Replace: Notes

Last modified: 01/04/2024 14:05:28

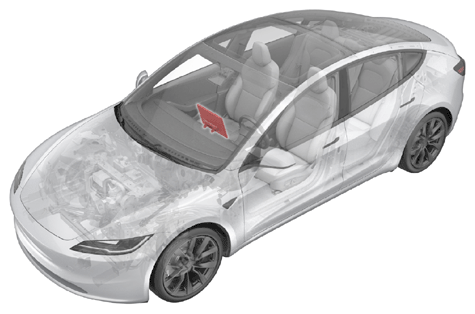

Fig 1: Front Touchscreen Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - TOUCHSCREEN - CENTER DISPLAY ASSEMBLY (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Patch bolts (x2) that attach the touchscreen to the instrumental panel carrier	16 N.m (11.8 lbs-ft)	Cordless Ratchet/Impact Driver 2 in extension 10 mm socket Ratchet/torque wrench	Replace
Bolts (x2) that attach the housing neck to the touchscreen	3 N.m (2.2 lbs-ft)	Torx T30 socket 2 in extension Ratchet/torque wrench	Reuse
