Passive Entry - Assembly, Rear Left BLE - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Open the trunk.
- Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
- Disconnect LV power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .

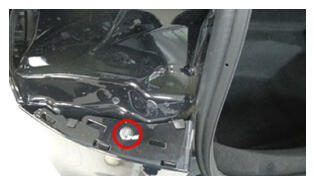

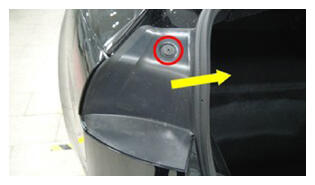

- Remove the bolt and clips (x3) that attach the LH rear trough trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- Torx T20 socket
- Torx T20 bit
- Ratchet/torque wrench

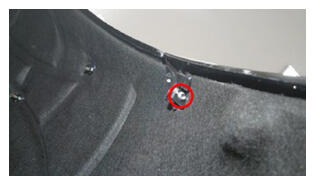

- Remove the bolt that attaches the rear fascia to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 2 in extension
- Ratchet/torque wrench

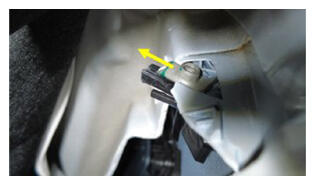

- Release the clip that attaches the aft lower section of the LH rear wheel arch liner to the vehicle.

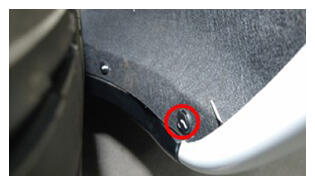

- Remove the bolt and the U-nut that attach the rear fascia to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- Torx T25 socket
- 2 in extension
- Ratchet/torque wrench

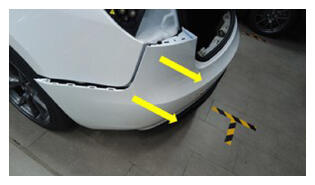

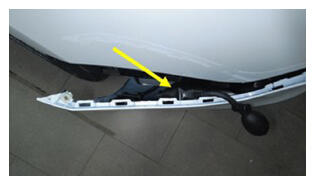

WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.multimedia:A supplement to the article is available. - Partially loosen the LH rear fascia away from the vehicle and insert a inflatable air bag, and then inflate the air bag to gain access to the LH rear BLE module.WARNING: Take care not to damage the rear fascia.

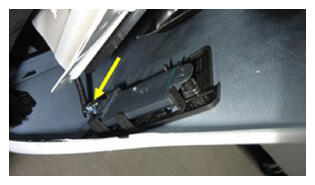

- Disconnect the electrical harness from the LH rear BLE module connector.

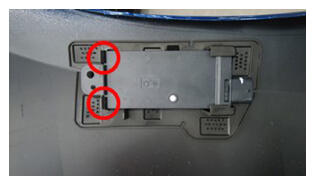

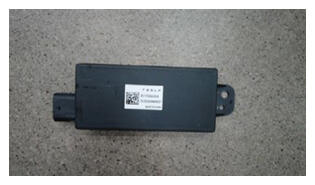

- Release the tabs (x2) that attach the LH rear BLE module to the rear fascia, and them remove it from the vehicle.
