Body Controllers - Assembly, Shield, Vcfront - Remove And Replace: Install

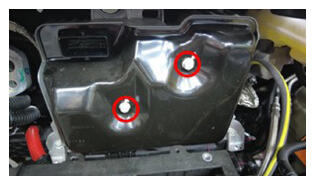

Position the front body controller shield onto the front body controller, then install the bolts (x2) that attach the front body controller shield to the front body controller.
8.5 N.m (6.3 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.

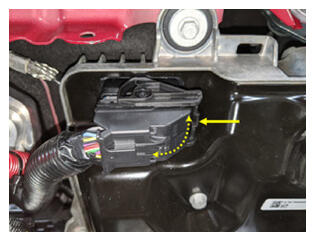

Connect the thermal sub-harness electrical connector to the front body controller.

Courtesy of TESLA, INC.
Install the LV power. See LV BATTERY - LI-ION BATTERY PACK - REMOVE AND REPLACE .
Connect the LV power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
Install the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
