Module - Restraint Control (Structural Pack) - Remove And Replace: Install

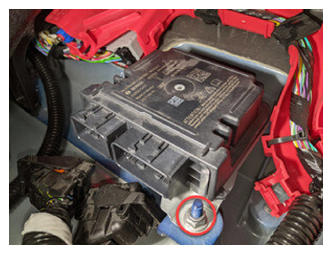

Position the restraint control module under the riser, and then align the module onto the alignment studs.
NOTE: Slide module under riser and align holes with studs

Courtesy of TESLA, INC.
Install new nuts (x3) that attach the restraint control module to the vehicle.

Courtesy of TESLA, INC.

Torque 8 N.m (5.9 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

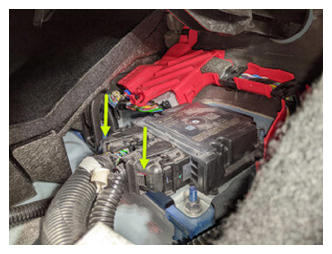

Connect the restraint control module connectors (x2).

Courtesy of TESLA, INC.
Install the RH center console side panel. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
Connect LV power. See 12 V/LV POWER - DISCONNECT AND CONNECT .
Position the HEPA filter assembly into the vehicle, and then install the bolts (x2) that attach the assembly to the vehicle.

Courtesy of TESLA, INC.

Torque 5 N.m (3.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:

NOTE: Pivot the front edge down past the frunk assembly, and then carefully move the rear edge past the brake reservoir and into position.
- 10mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
Move the front passenger seat to the original position.
Raise the RH front window and close the RH front door.
Reinstall the vehicle firmware. See SOFTWARE REINSTALL - TOUCHSCREEN
Connect a laptop with Toolbox 3 to the vehicle.
In Toolbox, run the ODIN routine PROC_RCM_X_BOL-CONFIGURATION.
In Toolbox, run the ODIN routine PROC_RCM_X_SERVICE-TASKS.
Disconnect Toolbox and remove the laptop from the vehicle.
Raise the LH front window and close the LH front door.
