Sensor - Radar - Interior - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front doors and windows.
  2. Remove the LH and RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  3. Remove the LH and RH sun visors. See Sun Visor - LH (Remove and Replace) .
  4. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  5. Remove the quad camera upper cover. See CAMERA - OCCUPANT (REMOVE AND REPLACE) .
  6. Partially release the headliner along the front edge from the body.

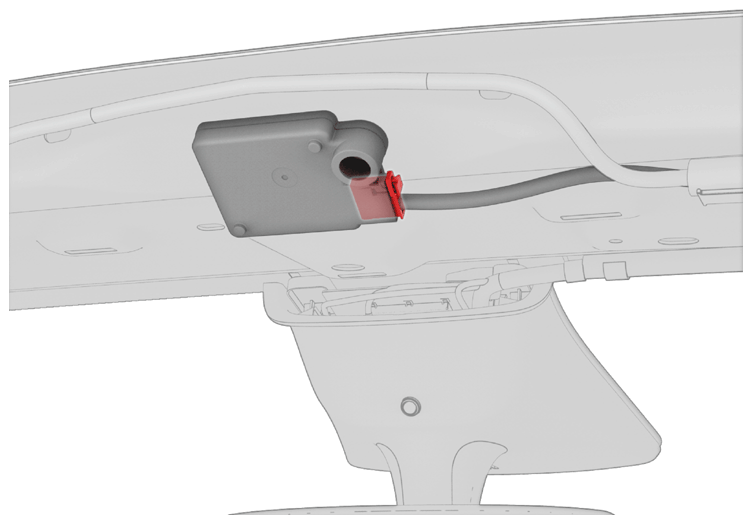

  7. Disconnect the connector from the interior radar assembly.
    G14833793Courtesy of TESLA, INC.

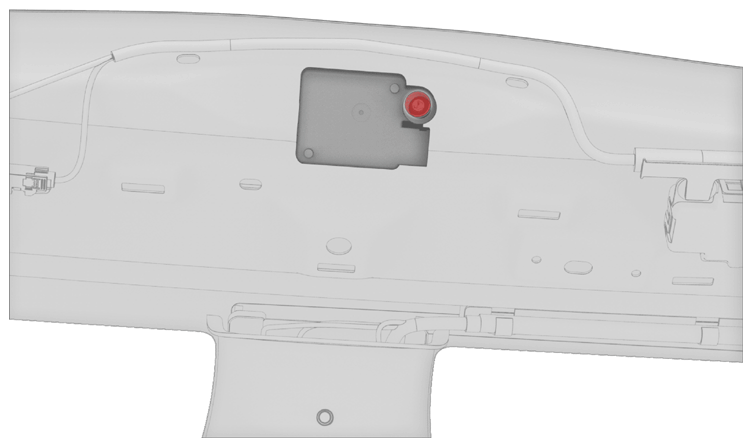

  8. Release the bolt (torque 9 N.m) that attaches the interior radar to the body, release the clip (x1) and then remove the interior radar assembly from the vehicle.
    NOTE: The bolt is captive inside the radar housing and cannot be removed from the radar assembly.

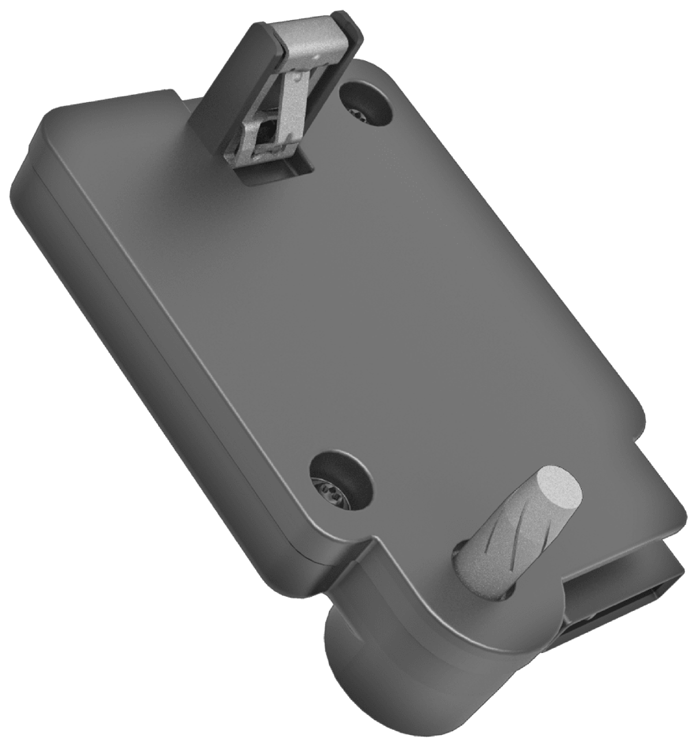

    G14833794Courtesy of TESLA, INC.
    G14833795Courtesy of TESLA, INC.
