Sensor - Radar - Front - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

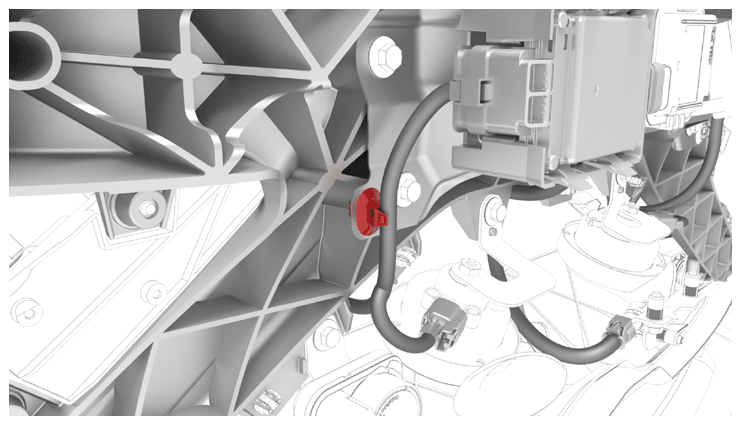

  2. Release the clip that attaches the front radar sensor wiring harness to the front end carrier.
    G14744075Courtesy of TESLA, INC.

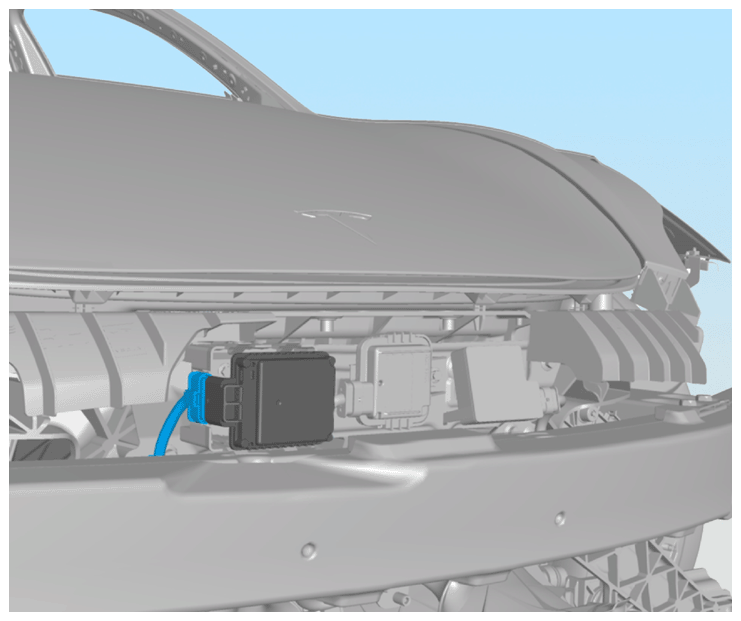

  3. Disconnect the electrical harness connector from the radar sensor.
    G14744076Courtesy of TESLA, INC.

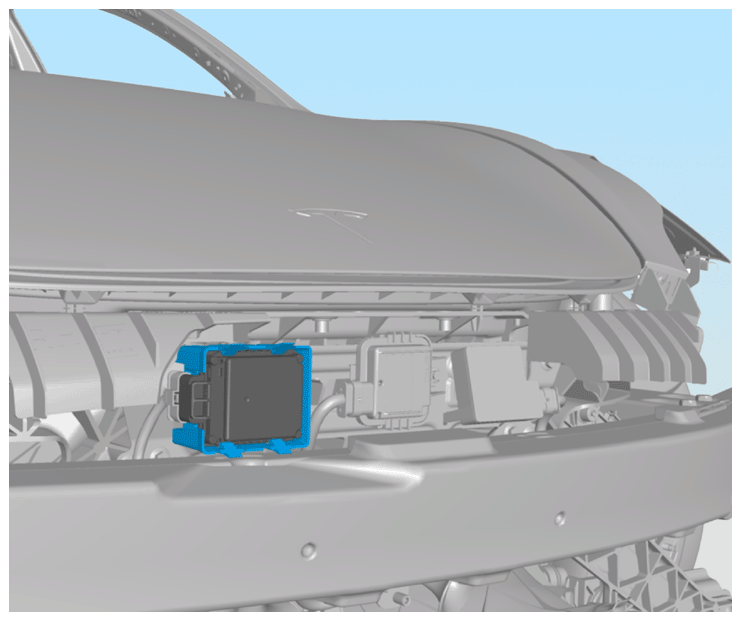

  4. Release the clips that attach the radar sensor to the front radar sensor bracket, and then remove the sensor from the vehicle.
    G14744077Courtesy of TESLA, INC.

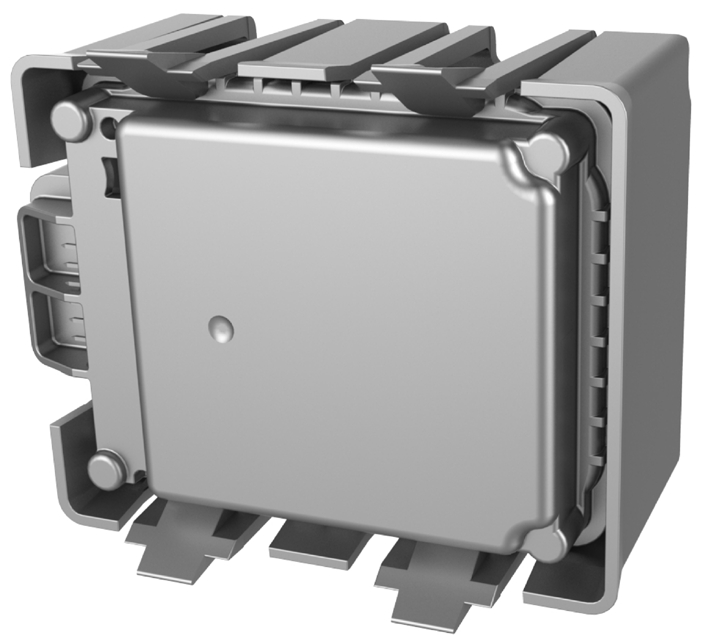

    G14744078Courtesy of TESLA, INC.
