Vehicle Electrical Isolation Procedure: Integrate

  1. If removed, put on the HV insulating gloves and leather over gloves.

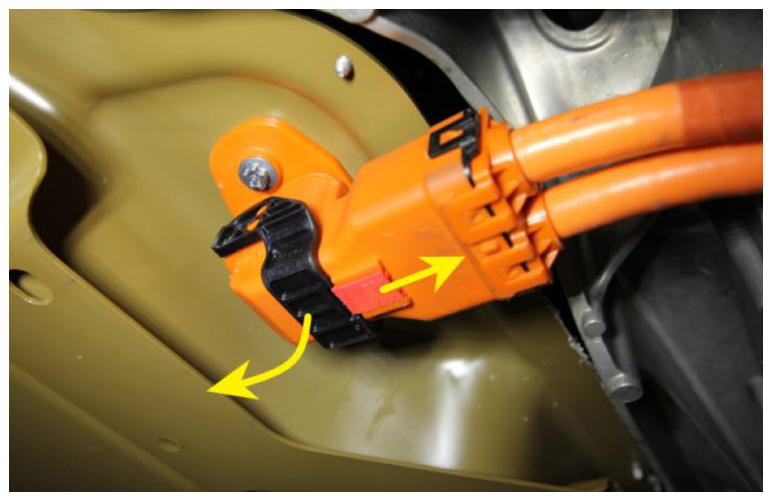

  2. Verify that the black release lever of the rear drive unit HV harness connector is in the open position, install the connector flat and square to the HV battery LH HV header, secure the release lever to the closed position, and then slide the red connector locking tab.
    G15087240Courtesy of TESLA, INC.
  3. Remove the leather glove protectors and the HV insulating gloves.
  4. Install the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace) .
  5. Lower the vehicle. See Raise Vehicle - 2 Post Lift .
  6. Connect LV power. See LV Power (Disconnect And Connect) .
  7. Remove the vehicle from the lift.
