Wiper Blades - Adjust: Procedure

  1. Remove the LH and RH wiper arm nut covers.

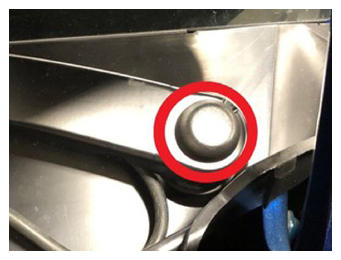

    G15093040Courtesy of TESLA, INC.

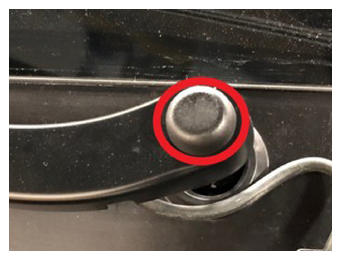

    G15093041Courtesy of TESLA, INC.
  2. Loosen the RH wiper arm and line up the wiper blade to the reference mark on the windshield, then torque the wiper arm nut.
    NOTE: 1x nut, 15 mm, 26 N.m

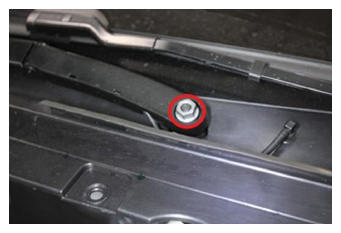

    G15093042Courtesy of TESLA, INC.

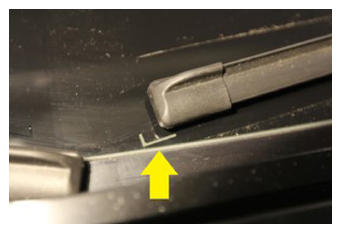

    G15093043Courtesy of TESLA, INC.
  3. Loosen the LH wiper arm and line up the wiper blade to the reference mark on the windshield, then torque the wiper arm nut.
    NOTE: 1x nut, 15 mm, 26 N.m

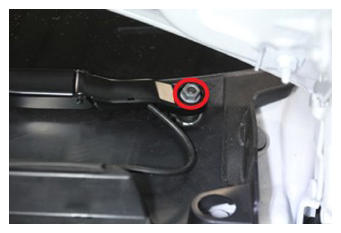

    G15093044Courtesy of TESLA, INC.
    G15093045Courtesy of TESLA, INC.
  4. Install the LH and RH wiper arm nut covers.
    G15093046Courtesy of TESLA, INC.
    G15093047Courtesy of TESLA, INC.
