Module - Body Controller - Security - Remove And Replace: Notes

Last modified: 25/10/2023 19:56:09

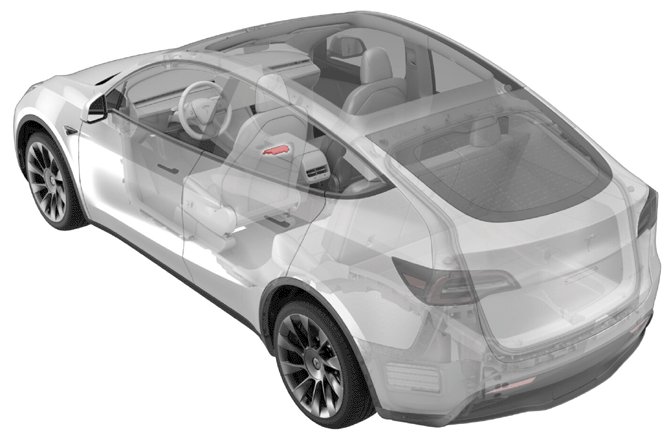

Fig 1: Security Body Controller Module Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History

2024-01-17: Added step for ODIN routine PROC_VCSEC_X_SET-ROOT-KEY-TO-ALL-REGIONS to be run for vehicles running certain firmware versions.
2023-11-20: Updated security controller configuration steps.
2023-10-24: Updated post-replacement Toolbox routines.
2023-07-21: Added Note about security-related toolbox actions.

NOTE:

Some of the Toolbox Actions within this procedure are related to vehicle security, and can only be performed by Tesla employees or third parties authorized to perform security-related Toolbox Actions. To learn more, see the Service Subscription FAQs available in the user account dropdown menu.
