Instrument Cluster - Remove And Replace: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform an instrument cluster factory reset.
    CAUTION: A factory reset of the instrument cluster is mandatory so that customer data is deleted prior to removal of the instrument cluster.
    1. Enable Service Mode. See Service Mode .
    2. Touch Controls  > Service  > Cluster Factory Reset  .
  2. Move the steering wheel fully downwards and away from the instrument panel.
  3. Remove the driver's outboard face level vent Face Level Vent - Driver's - Outer (Remove And Replace) .
  4. Remove driver's inboard face level vent Face Level Vent - Driver's - Inner (Remove And Replace) .
  5. Disconnect 12V power. See Disconnect 12V Power .

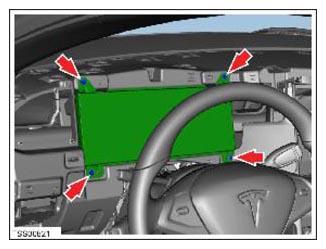

  6. Remove the screws (x4) that secure the instrument cluster to the IP carrier (torque 2 N.m).
    G14979948Courtesy of TESLA, INC.
  7. Carefully release the instrument cluster from the IP carrier to access the harness connections.
    CAUTION: Do not touch the screen.

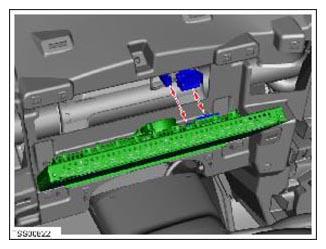

  8. Disconnect the electrical connectors (x2) from the rear of the instrument cluster.
    CAUTION: Protect the harnesses connectors from contamination and dirt ingress.
    G14979949Courtesy of TESLA, INC.
  9. Carefully remove the instrument cluster and put it onto a protected surface.
    CAUTION: Do not touch the screen.
