Windshield (Non-Structural Pack) Remove and Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open all doors and fully lower all windows.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR - REMOVE AND REPLACE .
  3. Remove the wiper arms. See WIPER ARMS - REMOVE AND REPLACE .
  4. Remove the cowl screen panel. See PANEL - COWL SCREEN - REMOVE AND REPLACE .

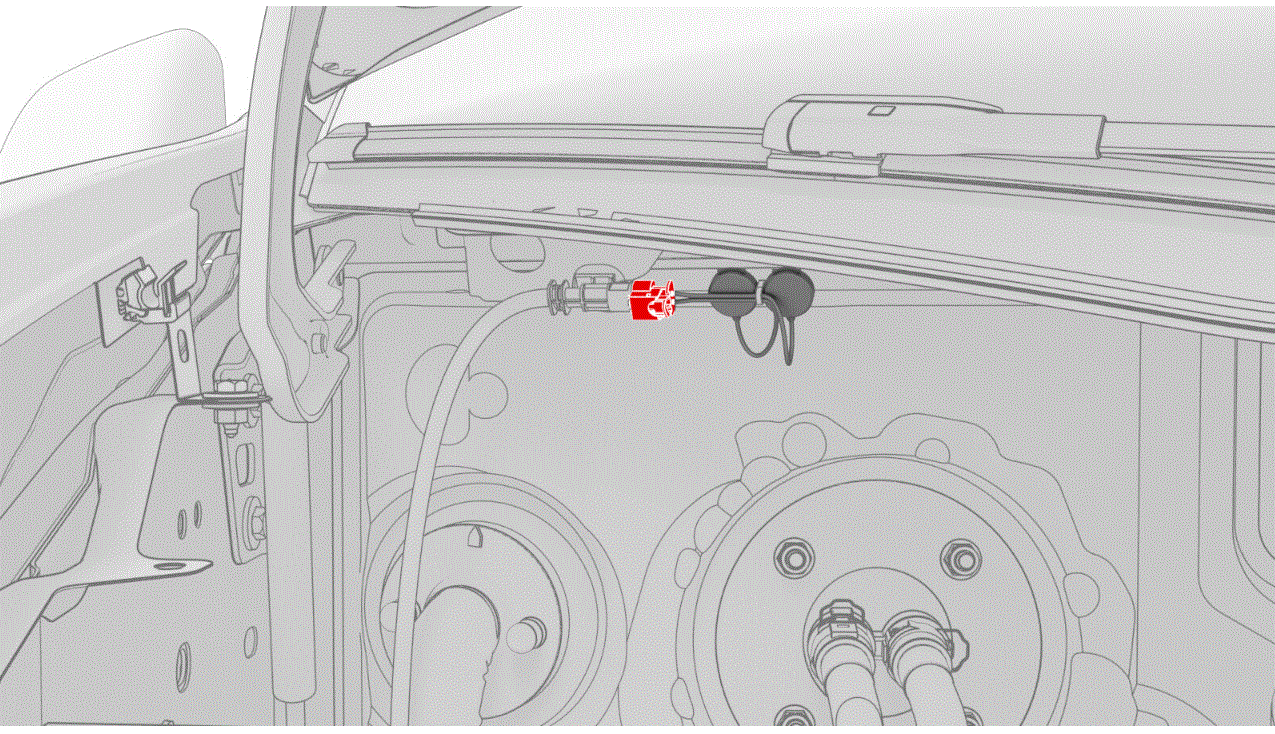

  5. Disconnect the electrical harness from the windshield heater connector.
    G00663913Courtesy of TESLA, INC.
  6. Remove the LH sunvisor check base. See CHECK BASE - SUN VISOR - LH - REMOVE AND REPLACE or CHECK BASE - MAGNETIC - SUN VISOR - LH - REMOVE AND REPLACE .
  7. Remove the rear view mirror. See MIRROR - REAR VIEW - REMOVE AND REPLACE .

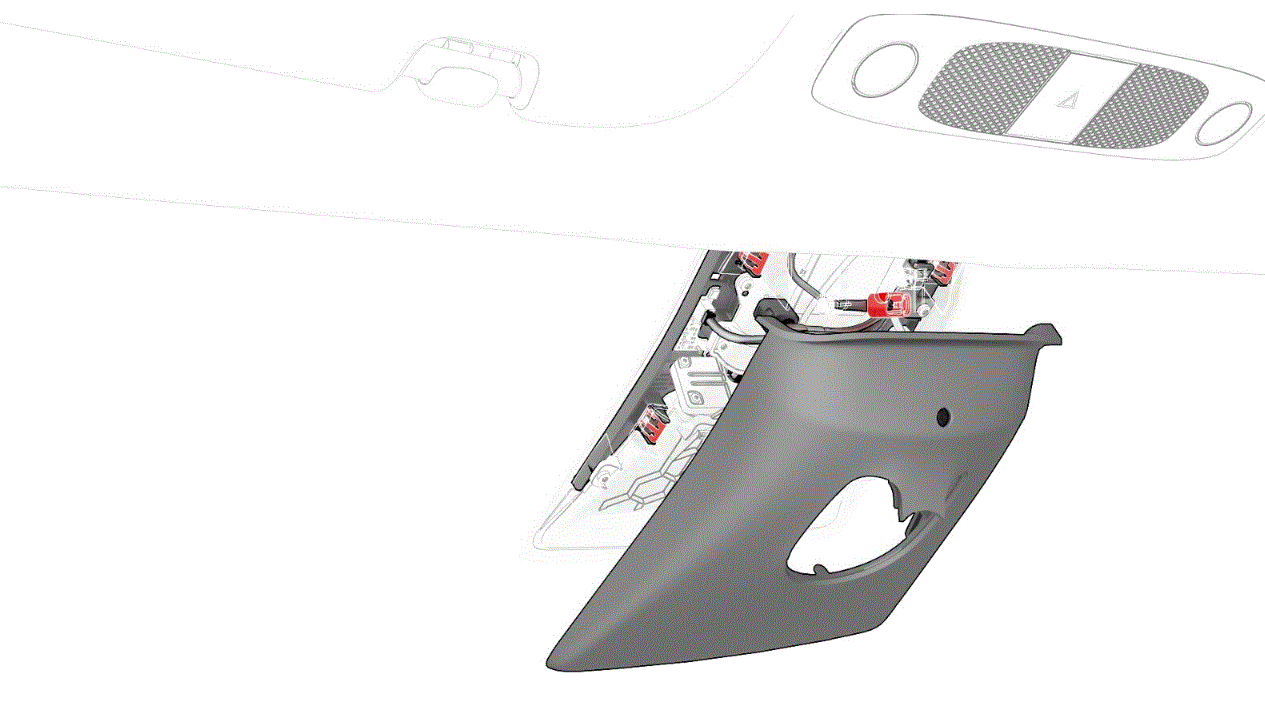

  8. Release the clips that attach the upper quad camera cover, disconnect the interior camera connector, and then remove the upper quad camera cover and interior camera assembly from the vehicle.
    CAUTION: Do not pull the upper quad camera cover with excessive force, as the electrical harness is still attached to the interior camera.
    G00663914Courtesy of TESLA, INC.
  9. Remove the triple camera hood. See HOOD - TRIPLE CAMERA - REMOVE AND REPLACE .

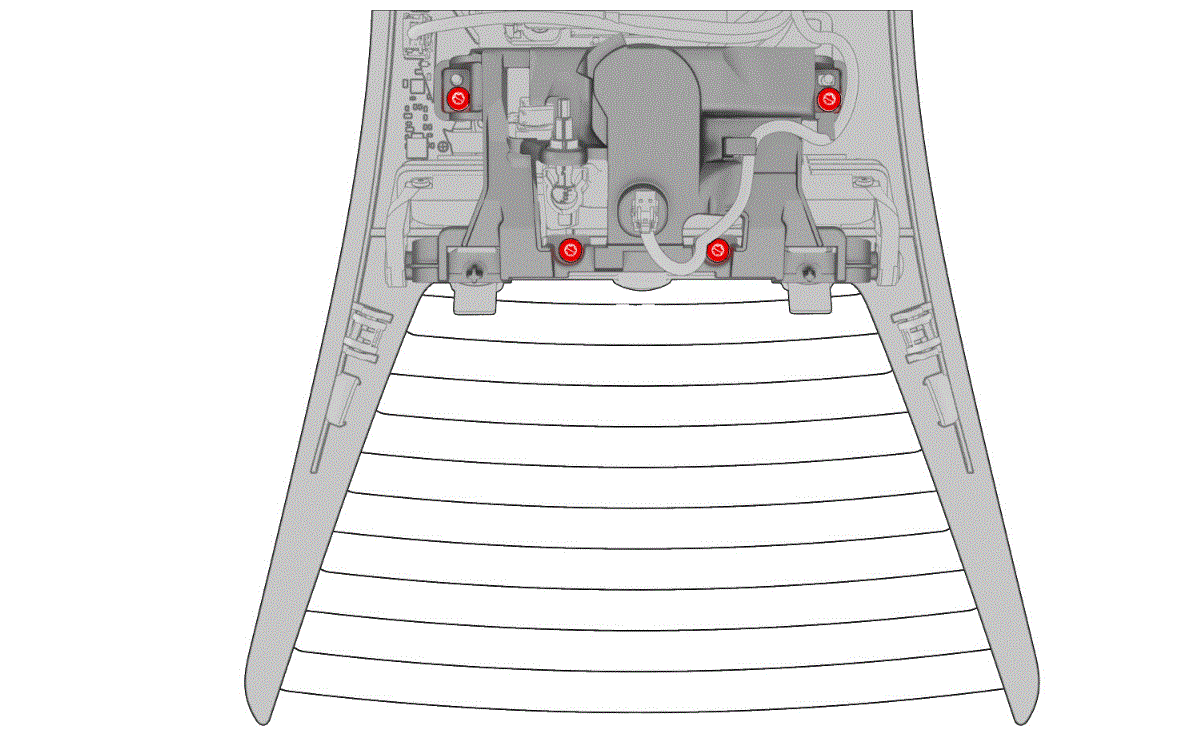

  10. Remove the screws (x4) that attach the forward facing camera assembly to the windshield bracket, and then release the assembly from the bracket.
    G00663915Courtesy of TESLA, INC.

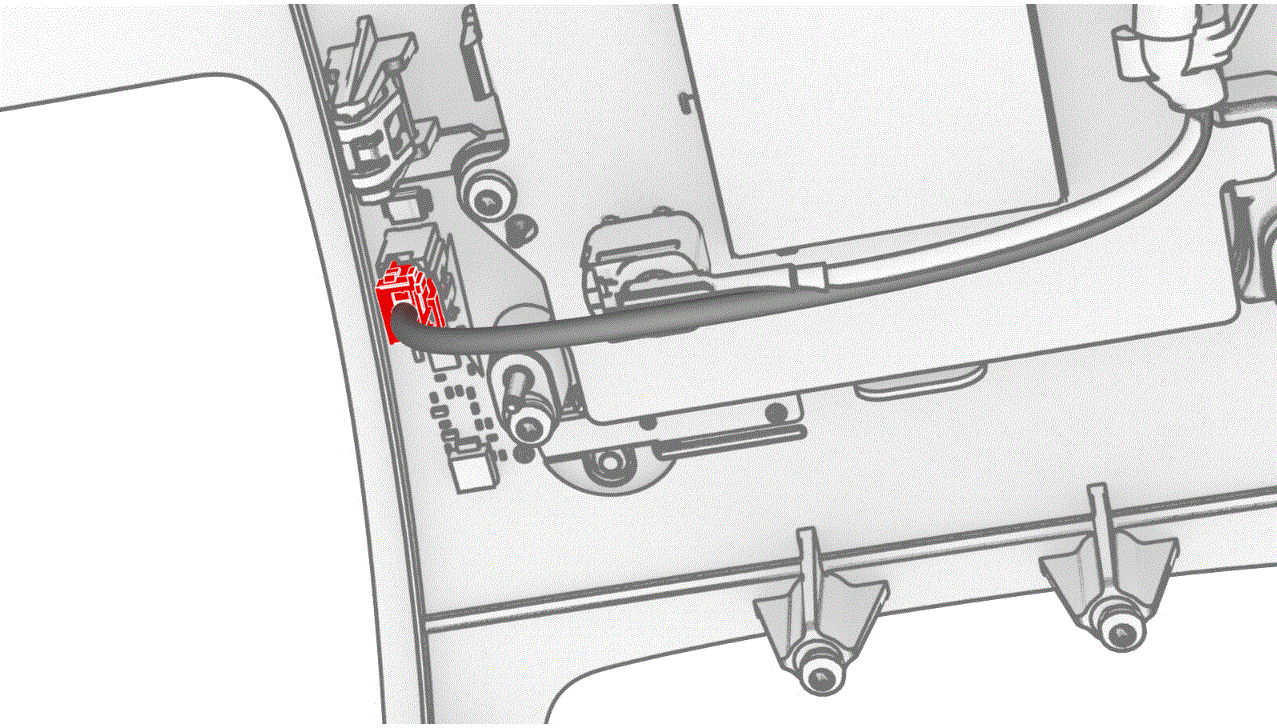

  11. Disconnect the humidity and temperature sensor electrical connector.
    G00663916Courtesy of TESLA, INC.

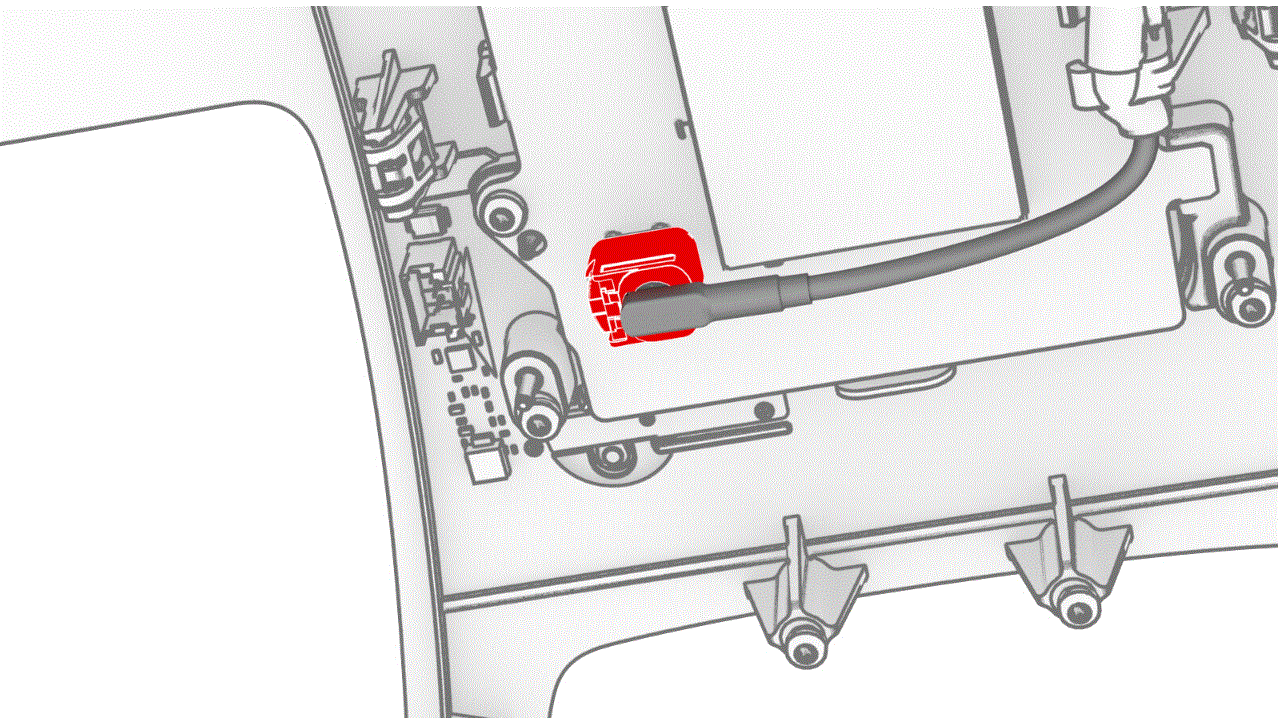

  12. Disconnect the GPS antenna connector.
    G00663917Courtesy of TESLA, INC.

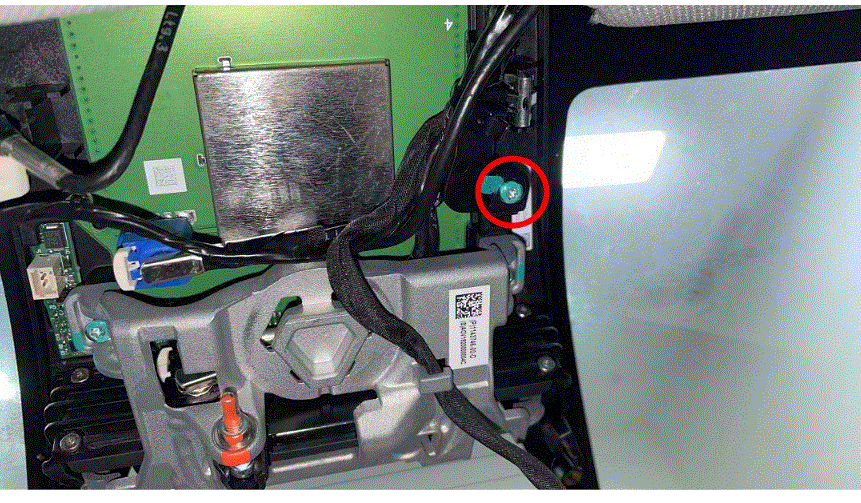

  13. Remove the screw that attaches the windshield harness to the windshield bracket, and then move the harness aside.

    1 Nm (.7 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 bit
    • Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only)
    G00663918Courtesy of TESLA, INC.

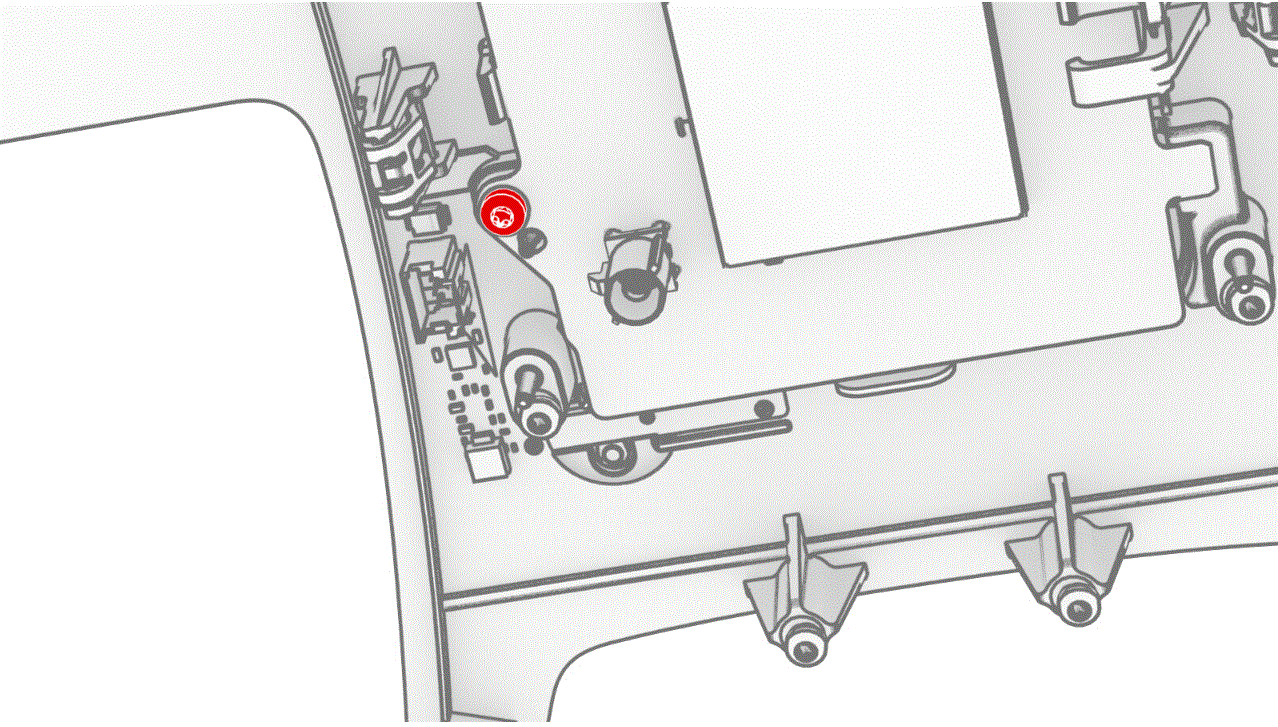

  14. Remove the screw that attaches the GPS antenna to the bracket, and then remove the antenna from the bracket.

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 bit
    • Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only)
    G00663919Courtesy of TESLA, INC.
  15. Remove the RH middle A-Pillar trim. See TRIM - A-PILLAR - MIDDLE - LH - REMOVE AND REPLACE .
  16. Remove the RH upper A-pillar trim. See TRIM - A-PILLAR - UPPER - LH - REMOVE AND REPLACE .
  17. Remove the RH sunvisor. See SUN VISOR - LH - REMOVE AND REPLACE .
  18. Remove the RH sunvisor check base. See CHECK BASE - SUN VISOR - LH - REMOVE AND REPLACE or CHECK BASE - MAGNETIC - SUN VISOR - LH - REMOVE AND REPLACE .

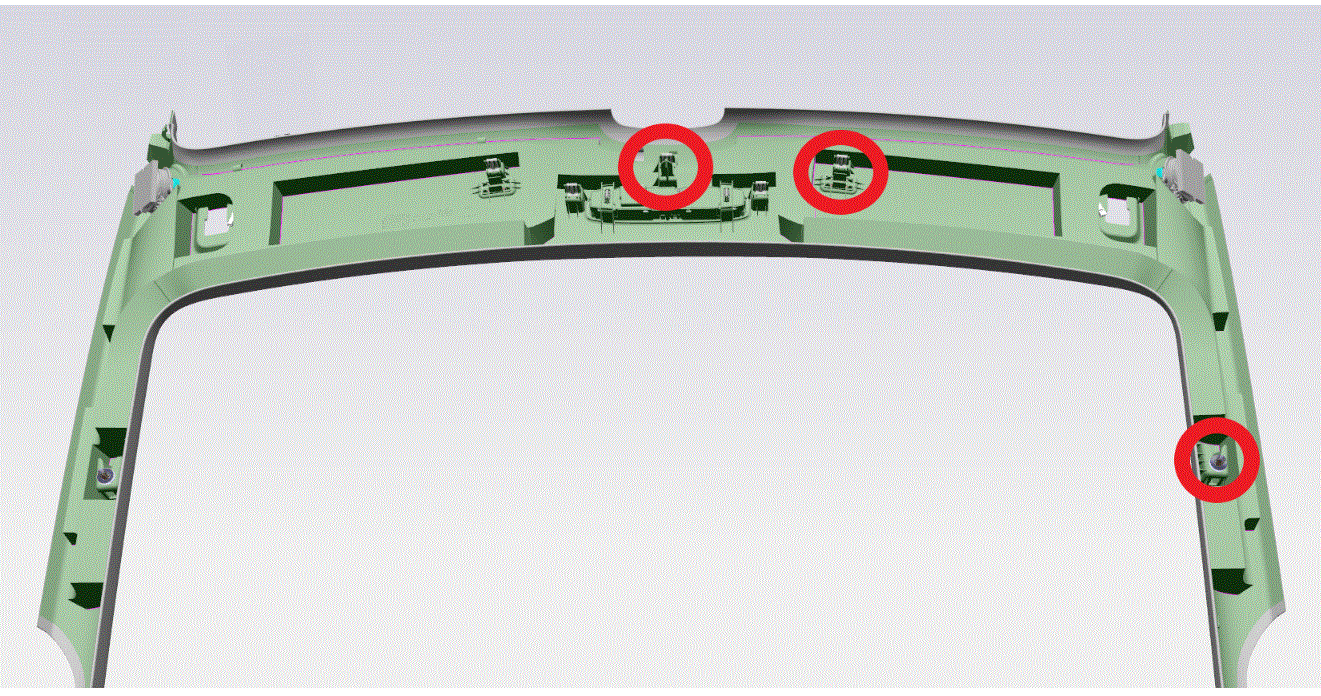

  19. Release the clips (x3) that attach the front of the front headliner to the body, and then separate the front part of the headliner from the body.
    NOTE: Pull downward from the center of the headliner to release the clips.
    G00663920Courtesy of TESLA, INC.

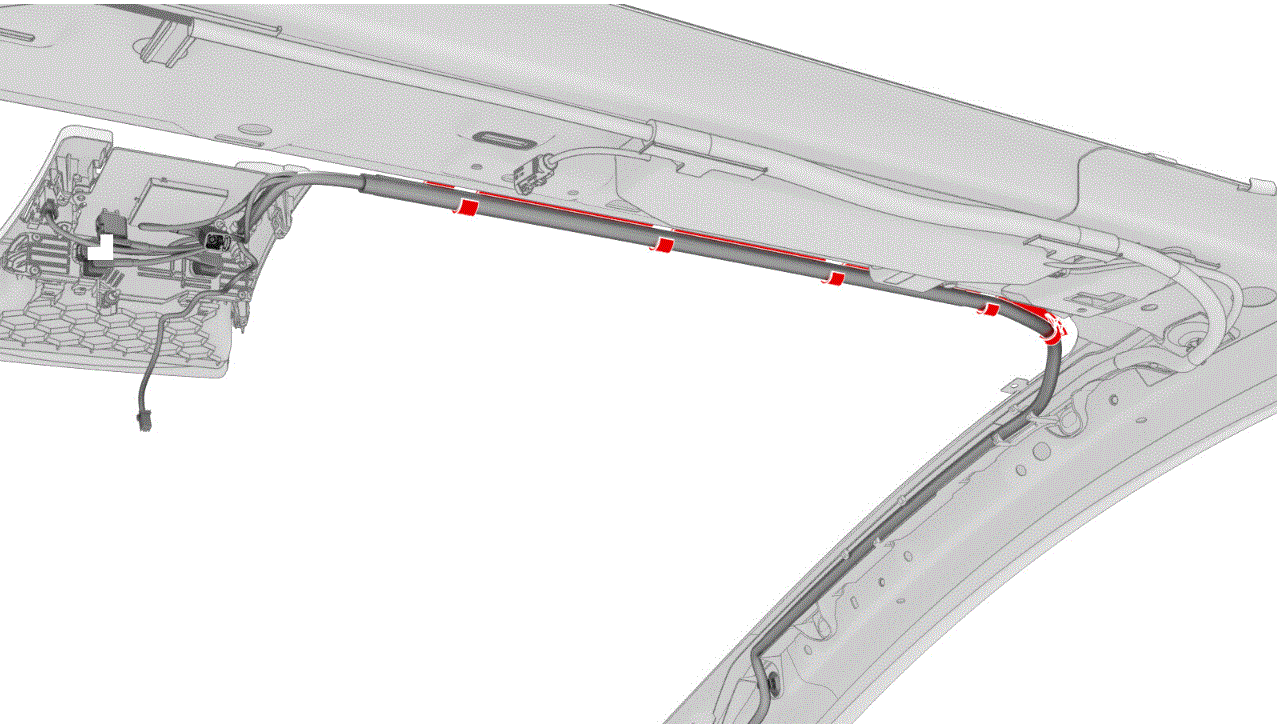

  20. Release the windshield harness from the windshield fastener track bracket.
    G00663921Courtesy of TESLA, INC.

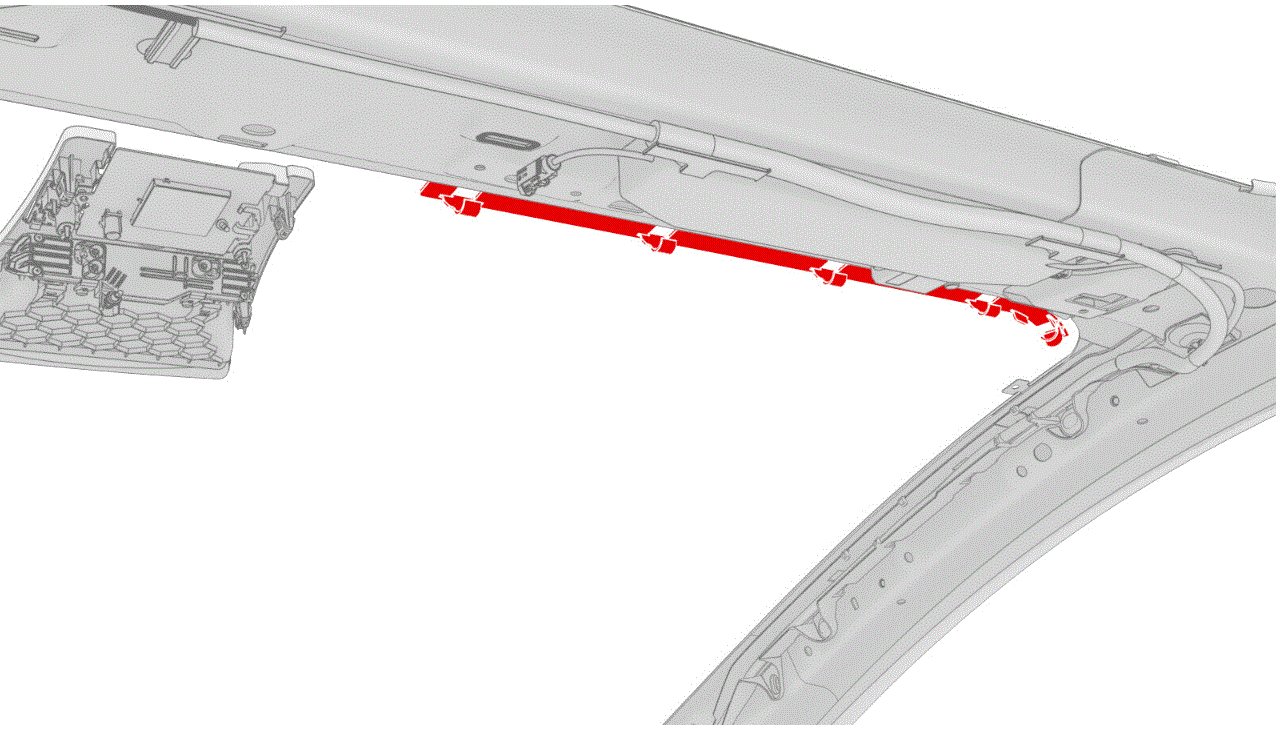

  21. Remove the fastener track.
    G00663922Courtesy of TESLA, INC.

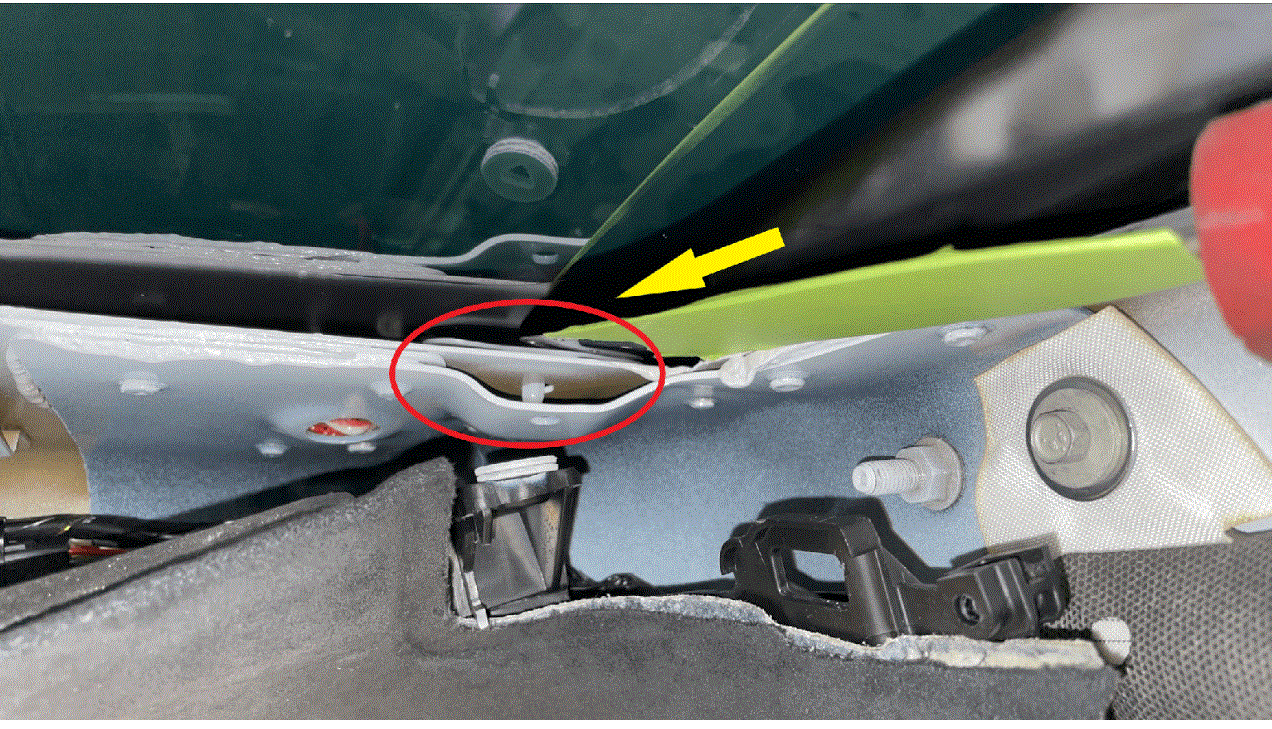

  22. Use an equalizer blade handle to separate the datums from the windshield.
    NOTE: The datums are located on each upper corner of the windshield.
    NOTE: The datum may not be clearly visible. Use the blade to feel for it.
    G00663923Courtesy of TESLA, INC.
  23. Prepare the WRD Spider 3 glass removal kit.

    Tip: Use of the following tool(s) is recommended:

    • WRD Spider 3 - 1571168-00-A

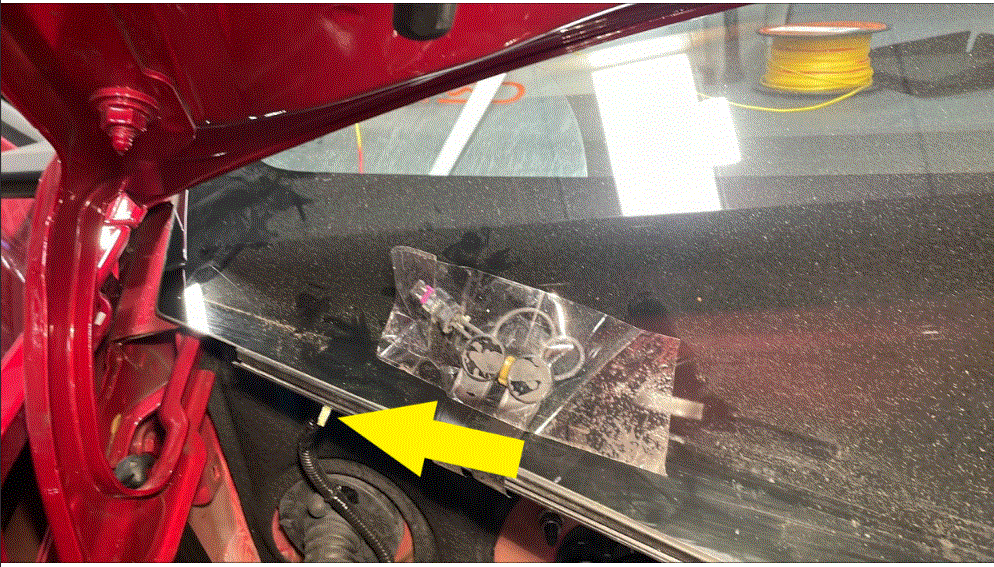

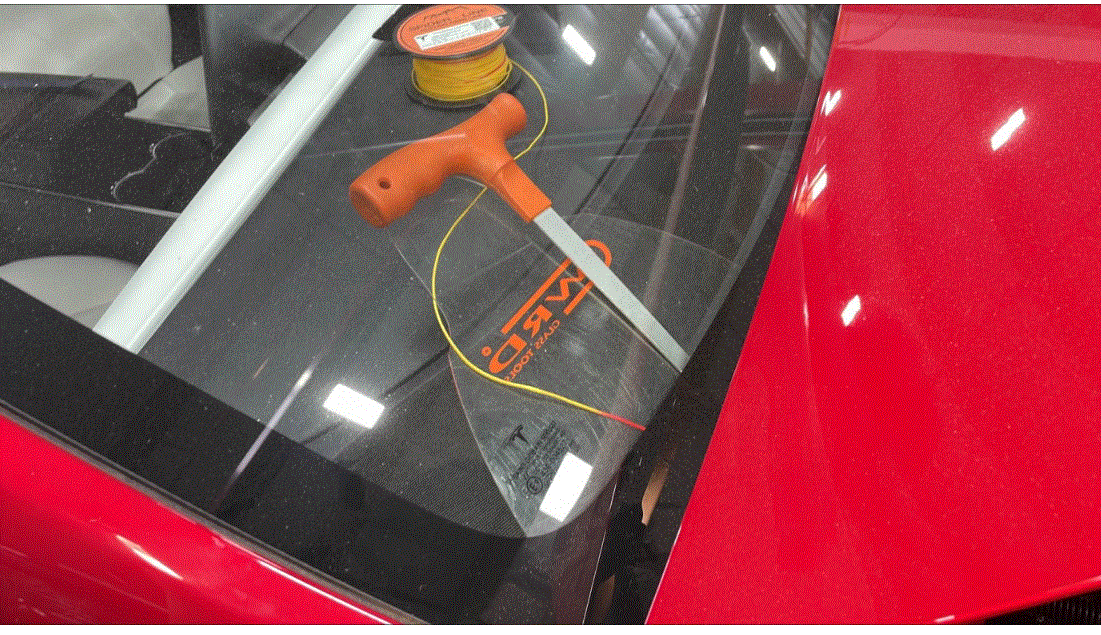

  24. Secure the wire to the starter tool and push the tool through the urethane at the RH lower side of the windshield assembly.
    CAUTION: Use the guard to prevent damage to the dash pad while using the starter tool.
    G00663924Courtesy of TESLA, INC.
    G00663925Courtesy of TESLA, INC.

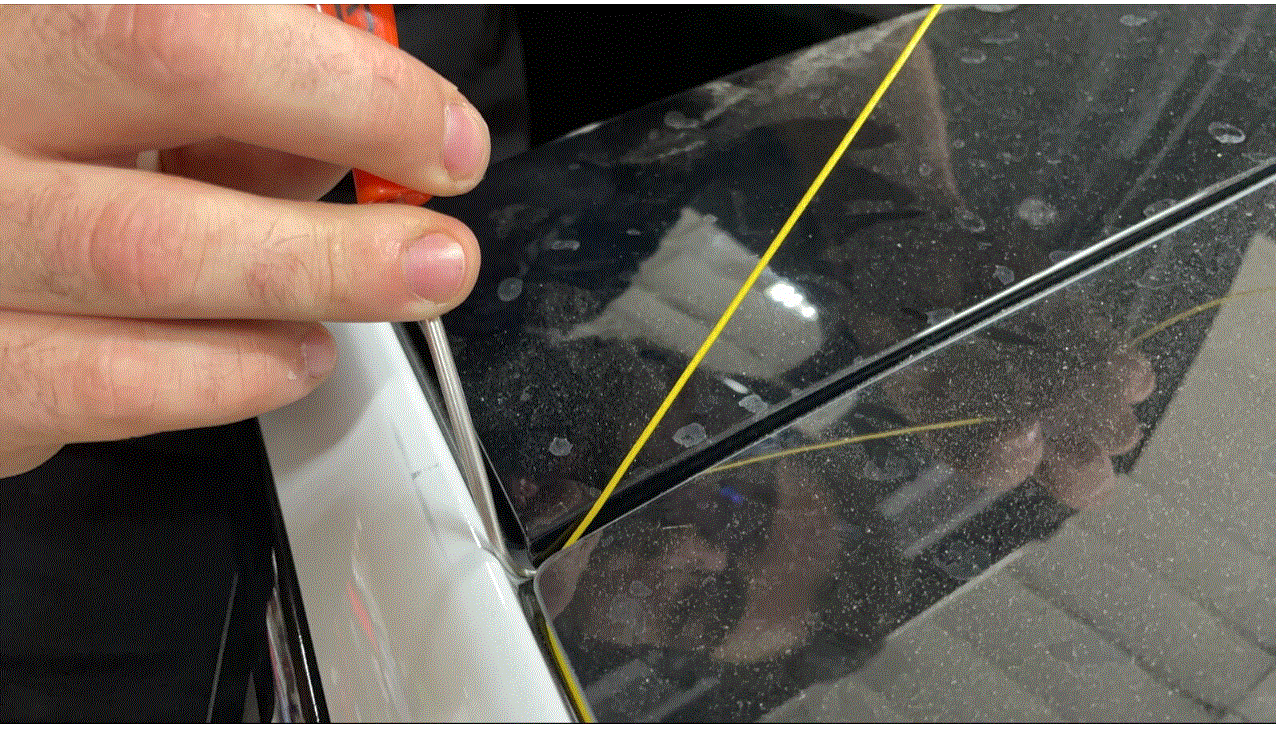

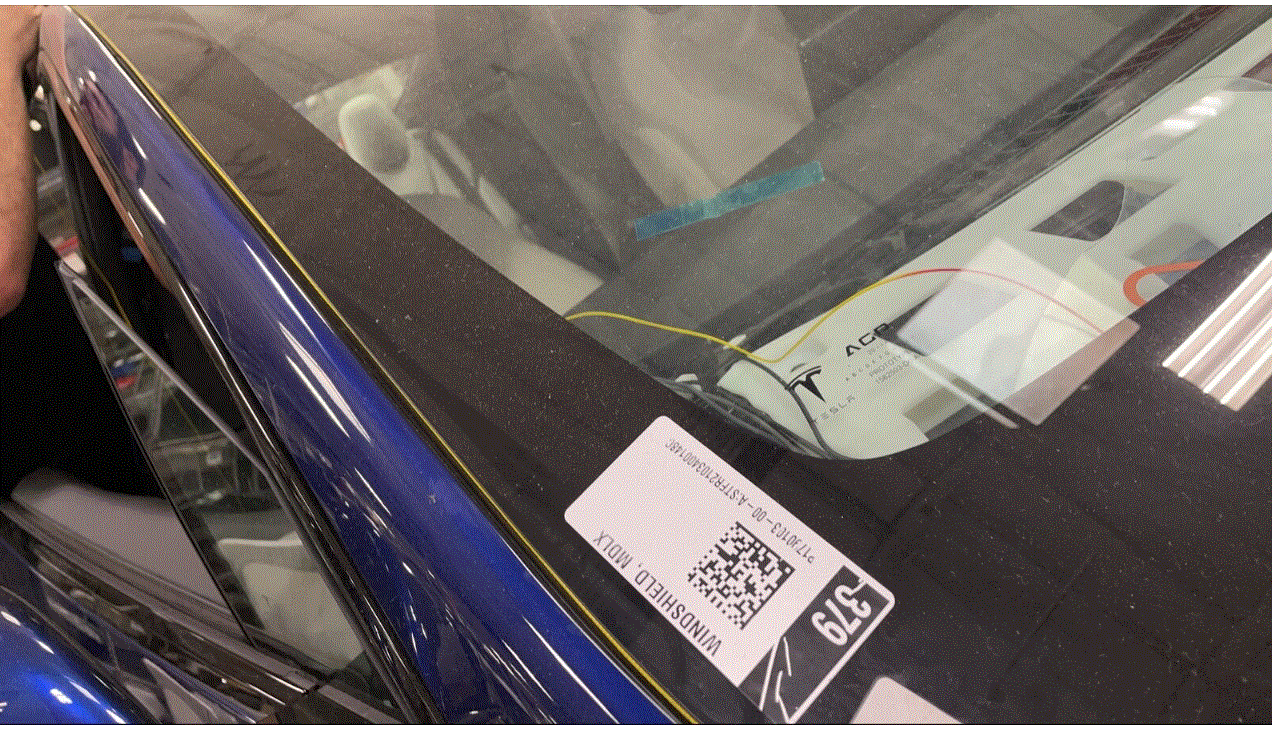

  25. Release the line from the starter tool and wrap the line around the exterior of the windshield.
    NOTE: Pull the line away from the starter tool. Make sure enough length is pulled through.
    NOTE: Verify the line sits underneath the glass
    G00663926Courtesy of TESLA, INC.
    G00663927Courtesy of TESLA, INC.
    G00663928Courtesy of TESLA, INC.

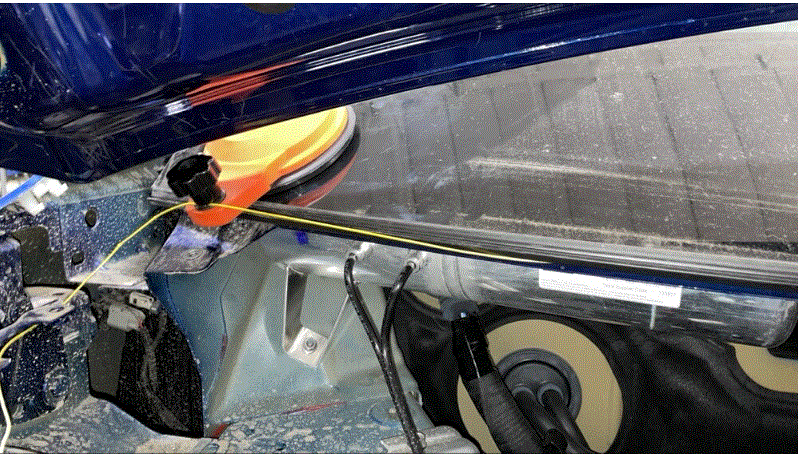

  26. Attach the anchor point to the exterior of the windshield near the starting point of the handle tool, and then secure the line to the anchor.
    G00663929Courtesy of TESLA, INC.

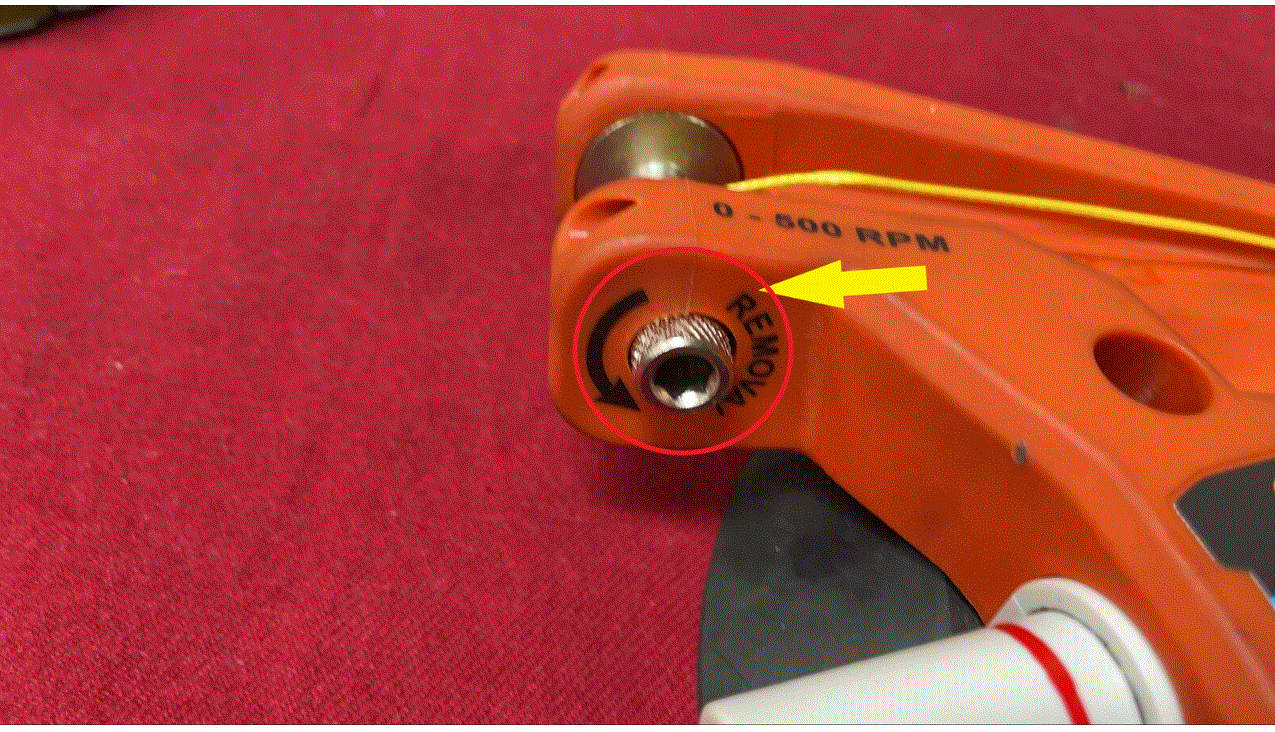

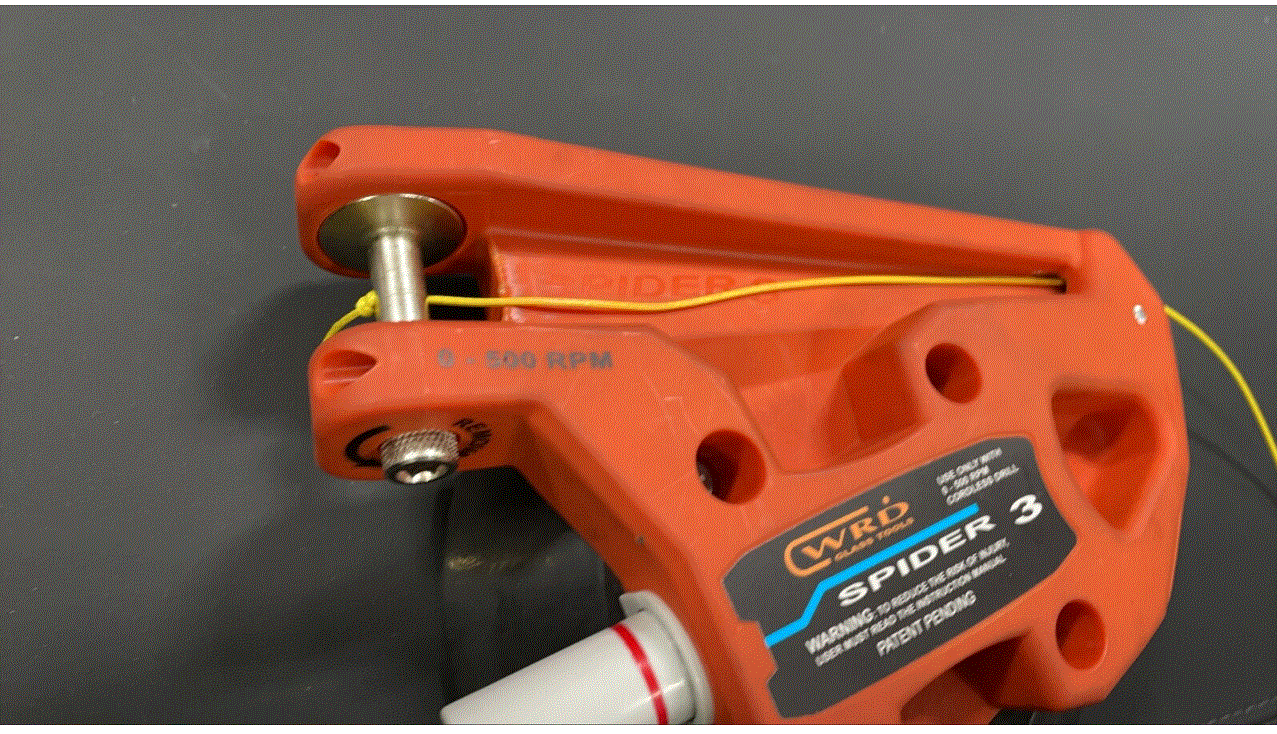

  27. Secure the interior side of the line to the Spider cutting tool.
    NOTE: Follow the instructions on the Spider tool. Feed the line through the opening of the cutting tool and tie a knot to secure the line in place. If the spindle is not turned the proper direction, the cutting tool will be damaged.
    G00663930Courtesy of TESLA, INC.
    G00663931Courtesy of TESLA, INC.

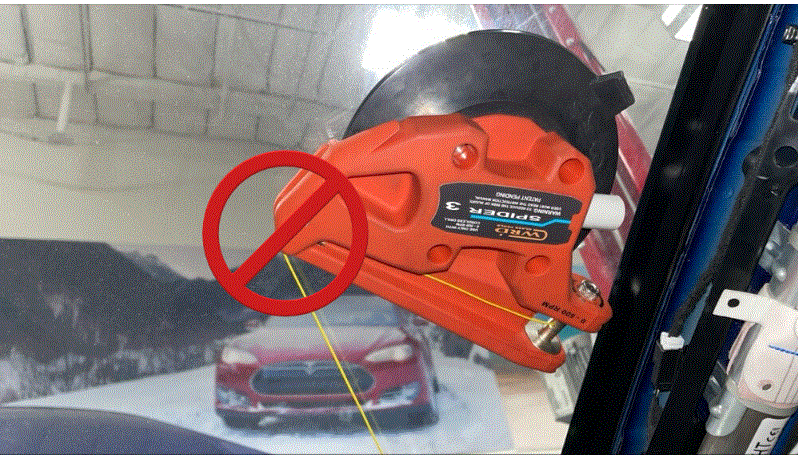

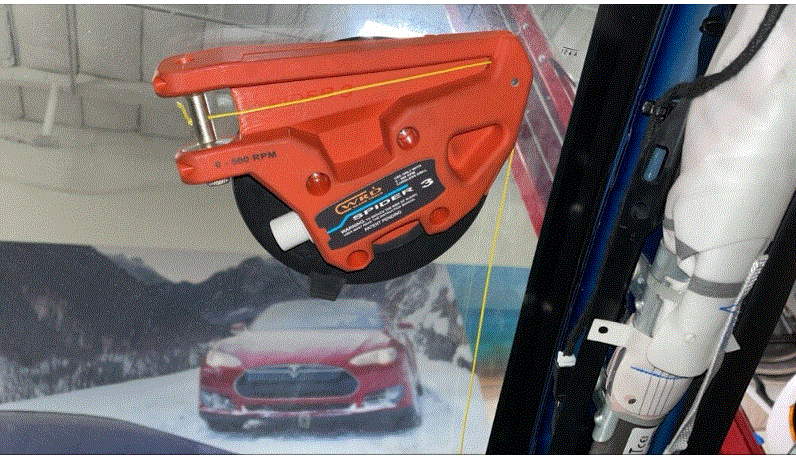

  28. Secure the Spider cutting tool to the interior side of the windshield.
    NOTE: Note the orientation of the cutting line. Make sure the line wraps over the large pulley and holds a 90 degree angle.
    G00663932Courtesy of TESLA, INC.
    G00663933Courtesy of TESLA, INC.

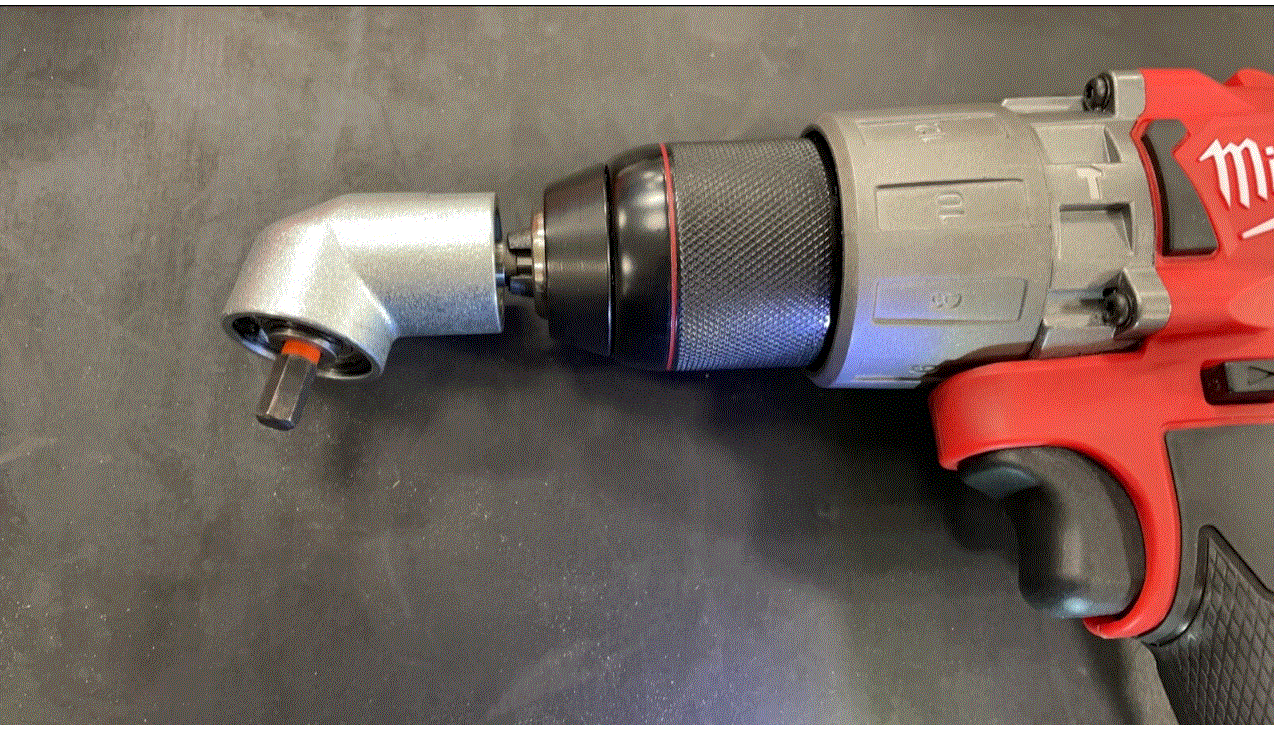

  29. Secure the angle driver to the electric drill.
    G00663934Courtesy of TESLA, INC.

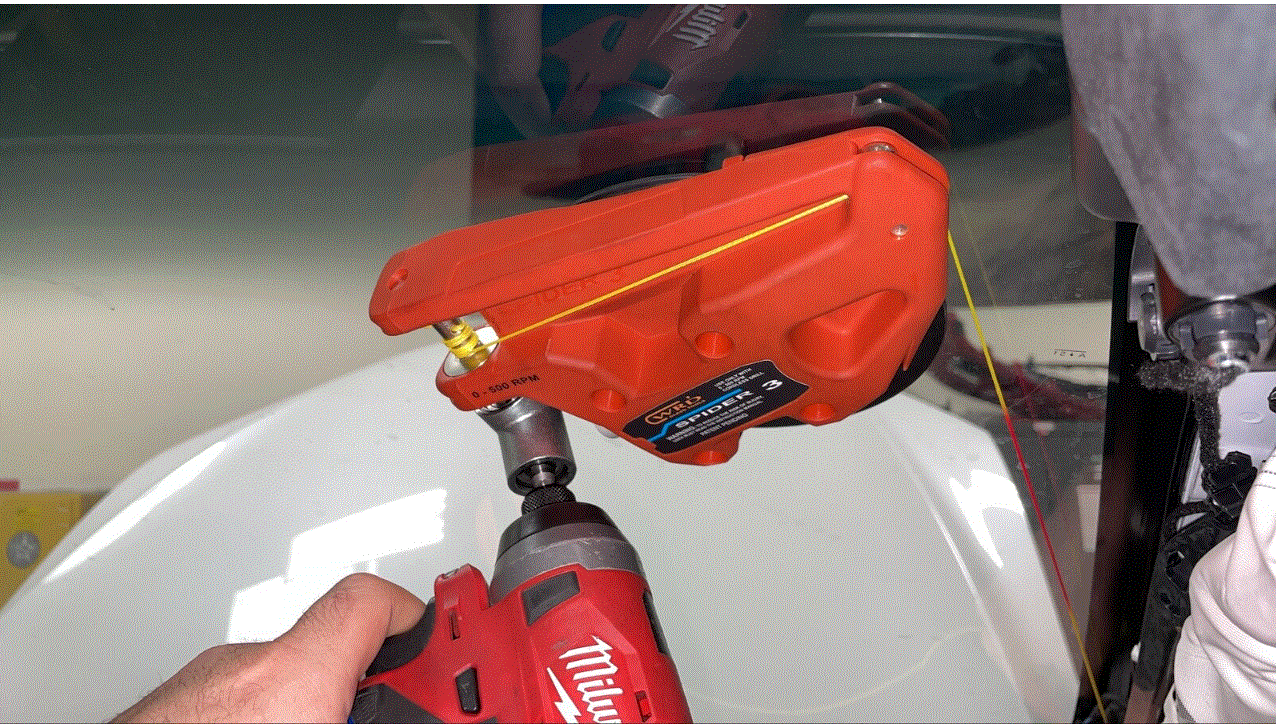

  30. Turn the spindle on the cutting tool with the drill to start remove the windshield.
    NOTE: Move the cutting tool as needed, keeping the line close to a 90 degree angle.
    CAUTION: When passing the VIN plate, use the guard to guide the line over the plate to prevent damage.
    G00663935Courtesy of TESLA, INC.

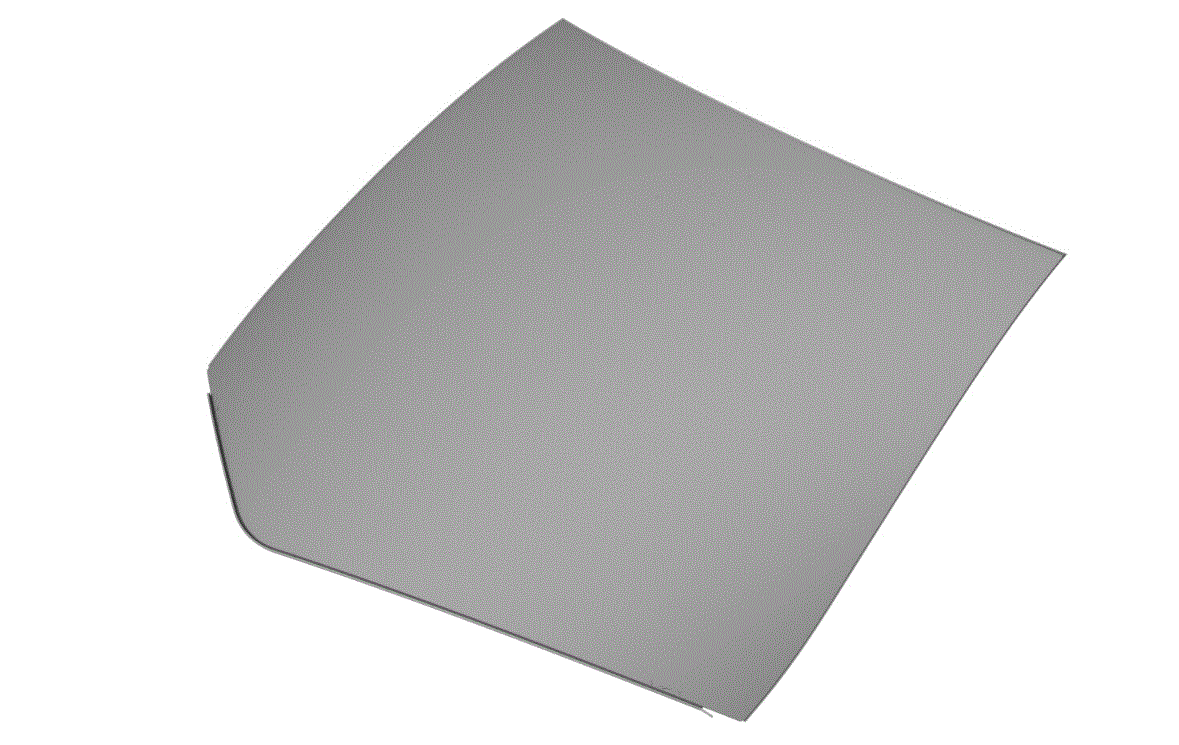

  31. Attach suction cups to the LH and RH sides of the windshield assembly.
  32. With an assistant, remove the windshield assembly from the vehicle.
  33. Remove the suction cups from the windshield assembly.
    G00663936Courtesy of TESLA, INC.
  34. Use a razor blade to remove the old urethane from the windshield flange on the vehicle.
  35. Remove the tape from the exterior of both A-pillars.
