Harness - Front End Module - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

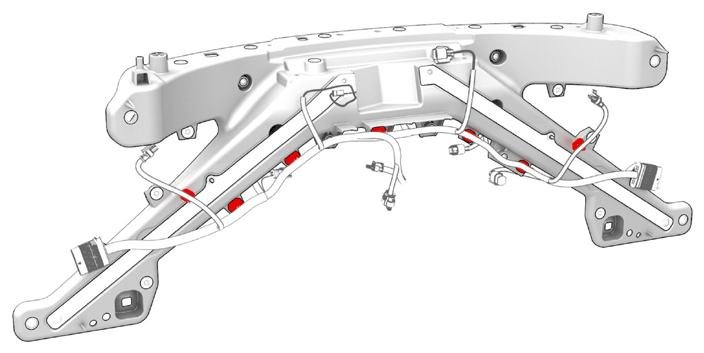

  1. Position the FEM electrical harness into the vehicle, and then install the clips that attach the electrical harness to the front end carrier.
    G14831931Courtesy of TESLA, INC.

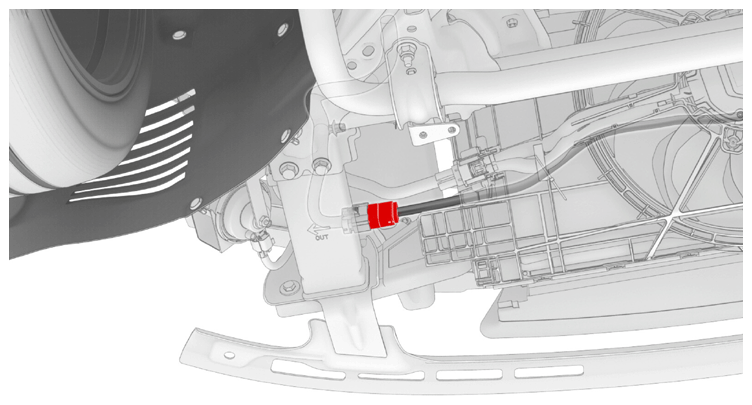

  2. Connect the LH and RH front end carrier harness electrical connectors, and then engage the connector locks.
    G14831932Courtesy of TESLA, INC.

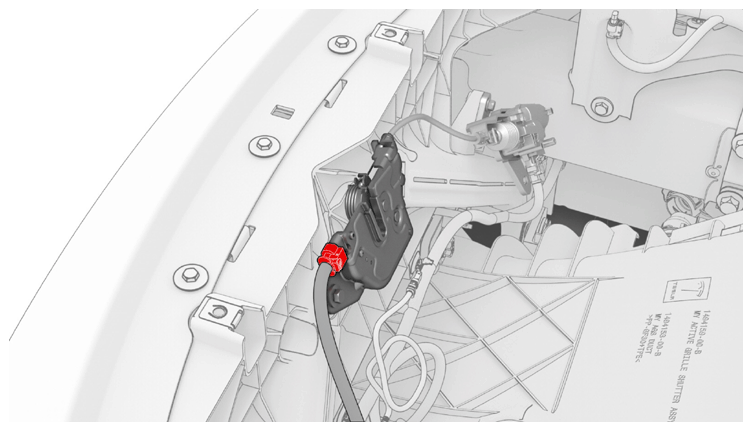

  3. Connect the hood latch assembly electrical connector, and then engage the connector lock.
    G14831933Courtesy of TESLA, INC.

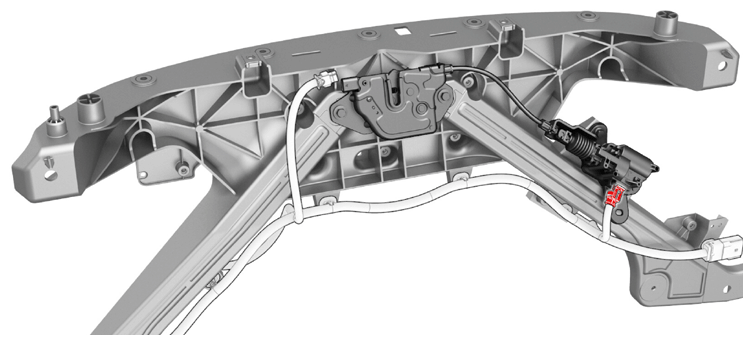

  4. Connect the hood latch actuator electrical connector.
    G14831934Courtesy of TESLA, INC.

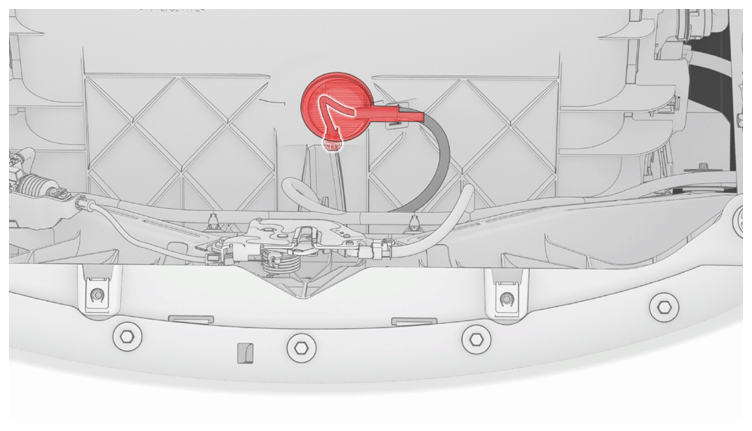

  5. Connect the ambient sensor electrical connector, and then install the sensor cover onto the active grille shutter.
    G14831935Courtesy of TESLA, INC.

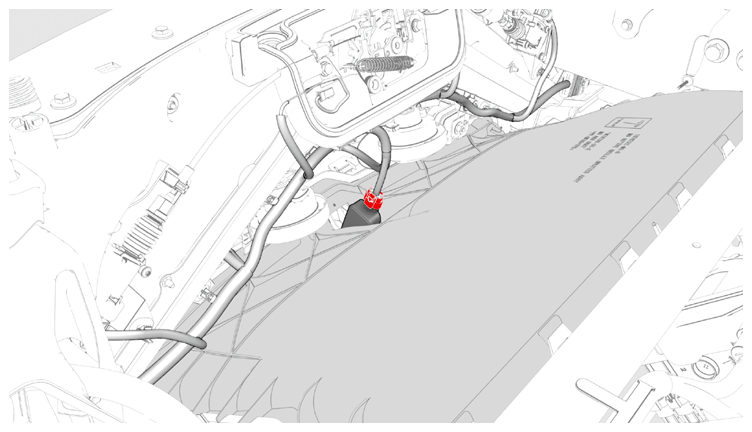

  6. Connect the active grille shutter electrical connector, and then engage the connector lock.
    G14831936Courtesy of TESLA, INC.

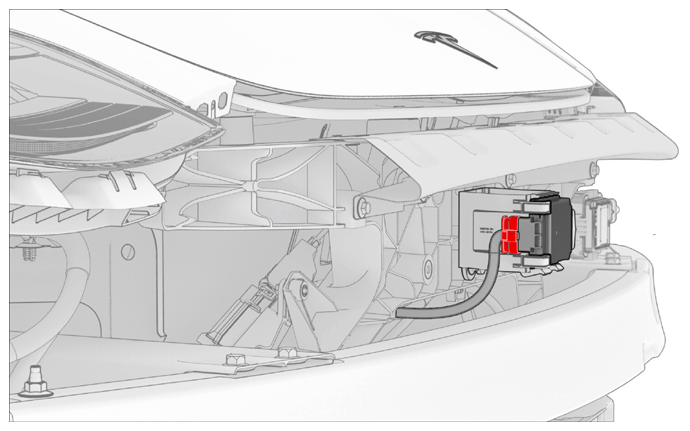

  7. Connect the radar sensor electrical connector.
    G14831937Courtesy of TESLA, INC.

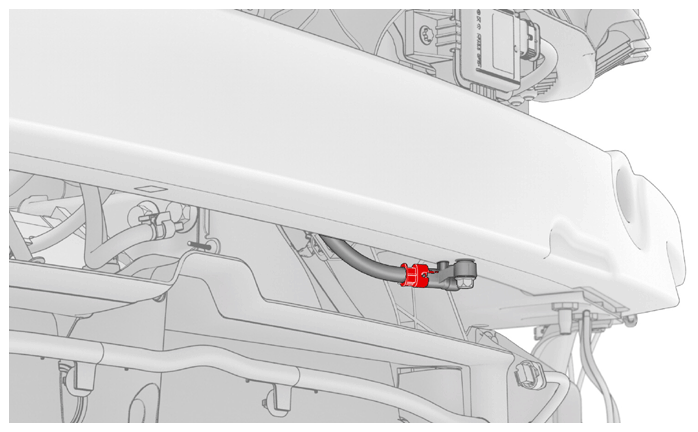

  8. Connect the LH and RH front airbag sensors electrical connectors.
    G14831938Courtesy of TESLA, INC.
  9. Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL)
  10. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .
  11. Close the LH front door.
