Tie Rod End - LH - Remove And Replace: Install

Install the tie rod end to the steering linkage by turning the tie rod end clockwise using the exact number of turns recorded during removal.

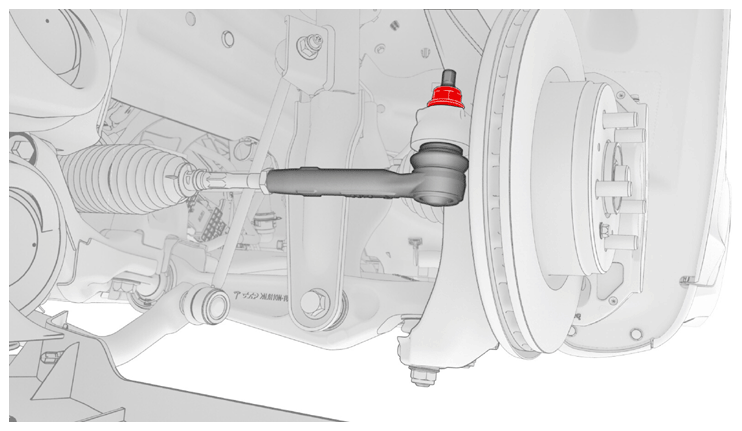

Install the new nut that attaches the tie rod end to the knuckle.
180 N.m

Tip: Use of the following tool(s) is recommended:
- 22 mm socket
- 10 mm 12 pt combination wrench
Courtesy of TESLA, INC.

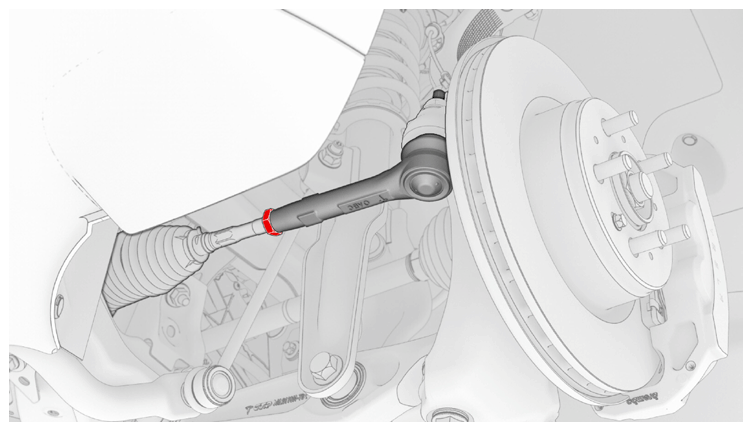

Use the witness marks to align the tie rod to the jamb nut and tighten the nut to secure the tie rod end in position.
80 N.m

Tip: Use of the following tool(s) is recommended:
- 21 mm 12 pt combination wrench
Courtesy of TESLA, INC.
Install the LH front wheel. See WHEEL (REMOVE AND INSTALL) .
Refer to the Alignment Requirement tables to determine if an alignment check or full adjustment is necessary. See Alignment REQUIREMENT - SUSPENSION .
