Sensor - Ped Pro Pressure Tube - Remove And Replace: Install

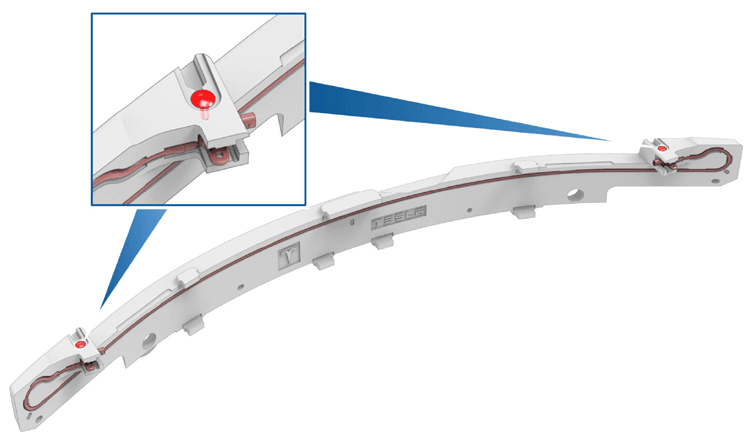

- Install the ped pro pressure tube into the front bumper beam foam, and then fasten the clips (x2) that attach the LH and RH ped pro pressure tube sensors to the foam.
- Install the front the bumper beam foam. See FOAM - BUMPER BEAM - FRONT (REMOVE AND REPLACE) .
- Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .
